Front Passenger Side Door Entry Lock Function does not Operate [07/2015 - ]: Wiring Diagram

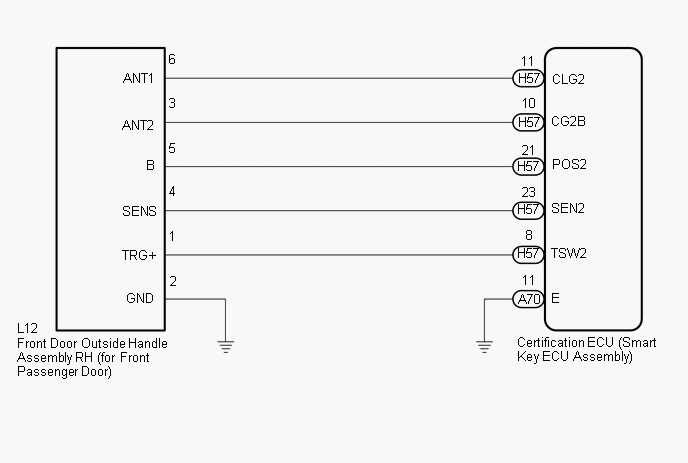

Fig 1: Front Door Outside Handle Assembly RH (For Front Passenger Door) (Lock Sensor) Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
