Driver Side Door Entry Lock Function does not Operate [07/2015 - ]: Wiring Diagram

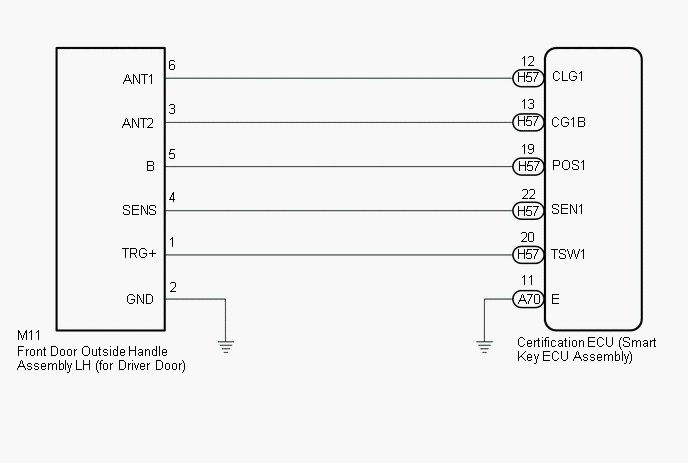

Fig 1: Front Door Outside Handle Assembly LH (For Driver Door) (Lock Sensor) Wiring Diagram
GTY651260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
