DTC B27A2: Open in Front Passenger Side Electrical Antenna Circuit [07/2015 - ]: Wiring Diagram

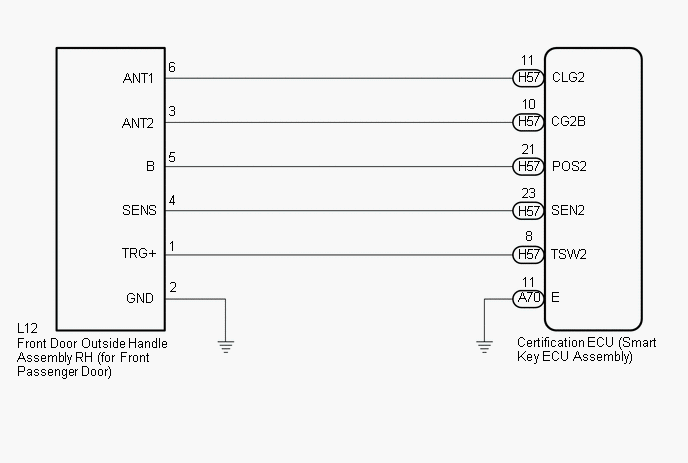

Fig 1: Front Door Outside Handle Assembly RH (For Front Passenger Door) Wiring Diagram
GTY681046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
