Installation [08/2014 - ]: Procedure

  1. INSTALL STEERING PAD SWITCH ASSEMBLY

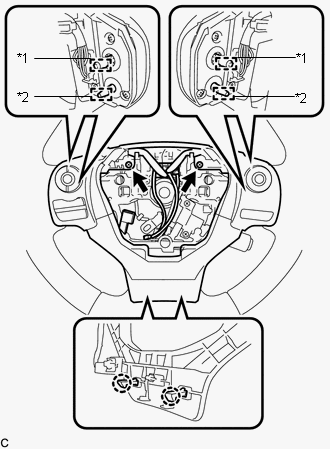

    1. Engage the 2 claws, 2 pins and 2 guides to install the steering pad switch assembly.
      GTY537875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Pin
      *2 Guide
    2. Install the 2 screws.

      Torque: 2.4 N*m (24 kgf*cm, 21 in.*lbf)

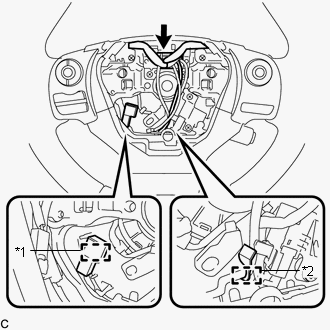

    3. Install the clamp.
      GTY527268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Clamp
      *2 Guide
    4. Pass the wire harness through the guide.
    5. Connect the steering pad switch connector to the spiral cable.

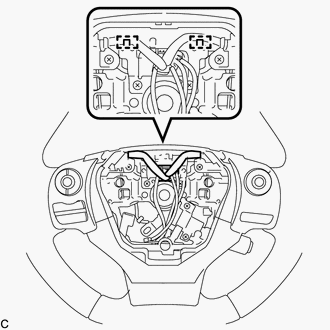

    6. Pass the wire harness over the 2 guides.
      GTY461207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL HORN BUTTON ASSEMBLY

    (See article. Refer to INSTALLATION [08/2014 - ] )
