Pre-Collision Brake Cancel Switch Circuit [08/2014 - ]: Procedure

1. Use the Data List to check if the pre-collision brake off switch assembly is functioning properly.
   PRE-COLLISION 2



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Pre-Collision Brake OFF Switch	Pre-collision brake off switch signal/ON or OFF	ON: Pre-collision brake off switch on OFF: Pre-collision brake off switch off	-

   OK

   On screen, each item changes between ON and OFF according to above chart.

Result:  OK

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

(Refer to Problem Symptoms Table [08/2014 - ] )

Result:  NG

NG

Refer to  2

1. Remove the pre-collision brake off switch assembly (Refer to Removal [08/2014 - ] ).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Switch Condition	Specified Condition
   1 - 2	Pressed	Below 1 Ω
   	Not pressed	10 kΩ or higher

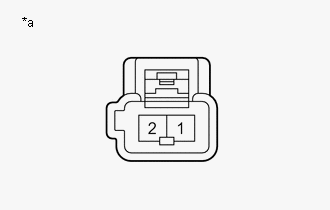

   TEXT IN ILLUSTRATION



   *a	Component without harness connected (Pre-collision Brake Off Switch Assembly)

3. Reinstall the pre-collision brake off switch assembly (Refer to Installation [08/2014 - ] ).

Result:  NG

NG

REPLACE PRE-COLLISION BRAKE OFF SWITCH ASSEMBLY

(Refer to Removal [08/2014 - ] )

Result:  OK

OK

Refer to  3

1. Disconnect the pre-collision brake off switch assembly connector.
2. Disconnect the driving support ECU connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H33-1 - H5-5 (PBSW)	Always	Below 1 Ω
   H33-1 - Body ground	Always	10 kΩ or higher
   H33-2 - Body ground	Always	Below 1 Ω

4. Reconnect the driving support ECU connector.
5. Reconnect the pre-collision brake off switch assembly connector.

Result:  NG

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (PRE-COLLISION BRAKE OFF SWITCH - DRIVING SUPPORT ECU)

Result:  OK

OK

Refer to  4

1. Disconnect the pre-collision brake off switch assembly connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H33-2 - Body ground	Always	Below 1 Ω

3. Reconnect the pre-collision brake off switch assembly connector.

Result:  OK

OK

REPLACE DRIVING SUPPORT ECU

(Refer to Removal [08/2014 - ] )

Result:  NG

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (PRE-COLLISION BRAKE OFF SWITCH ASSEMBLY - BODY GROUND)
