DTC P0106: Manifold Absolute Pressure / Barometric Pressure Circuit Range / Performance Problem [08/2014 - ]: Description

The manifold absolute pressure sensor detects pressure inside the intake manifold as an absolute pressure with a built-in sensor and outputs a voltage. Based on the voltage from the manifold absolute pressure sensor, the ECM controls the air fuel ratio, and detects errors in the pressure sensor using the changes in pressure.

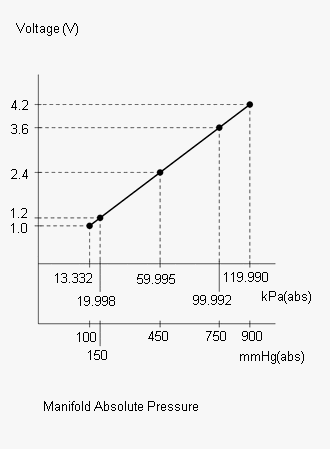

Fig 1: Manifold Absolute Pressure VS Voltage Graph

DTC No.	DTC Detection Condition	Trouble Area
P0106	Intake manifold pressure measured after engine start drops by less than 3 kPa (22.5 mmHg) compared to the intake manifold pressure (atmospheric pressure) measured before engine start (2 trip detection logic).	Intake system Manifold absolute pressure sensor
