Removal [08/2014 - ]: Procedure

  1. REMOVE NO. 2 CYLINDER HEAD COVER

    Refer to PROCEDURE - Step 20

  2. REMOVE IGNITION COIL ASSEMBLY
    1. Disconnect the 4 ignition coil connectors.

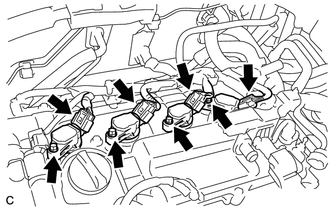

      GTY328873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts and 4 ignition coils.
      NOTE:

      When removing each ignition coil, do not damage the plug cap on the engine head cover opening or the upper edge of the spark plug tube.

  3. REMOVE SPARK PLUG
    1. Using a 14 mm spark plug wrench, remove the 4 spark plugs.

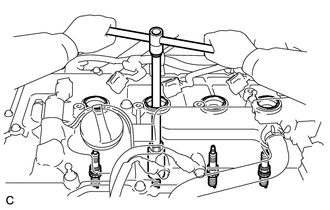

      GTY331292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
