Components [08/2014 - ]: Illustration

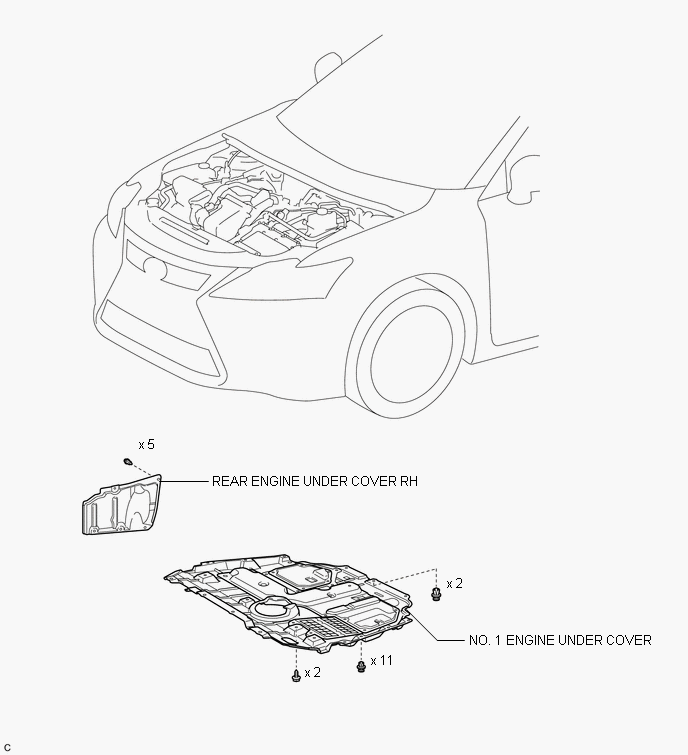

Fig 1: Crankshaft Position Sensor Replacement Components (1 Of 2)
GTY456302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY225418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
