Removal [08/2014 - ]: Procedure

  1. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  2. REMOVE HORN BUTTON ASSEMBLY

    (See article. Refer to REMOVAL [08/2014 - ] )

  3. REMOVE STEERING WHEEL ASSEMBLY

    See step  3

  4. REMOVE STEERING COLUMN COVER
    NOTE:

    Removing the steering column cover in the incorrect order will cause the parts to break.

    1. Remove the 2 screws.
      GTY523075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Push the right and left sides of the steering column cover (lower side) to disengage the 4 claws.
      GTY534585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Insert fingers into the opening of the tilt lever of the steering column cover (lower side) to disengage the 2 claws and remove the steering column cover (lower side).
      GTY538263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Spread the claws to disengage them.

    4. Disengage the 4 clips and 2 guides from the steering column cover (upper side).
      GTY534588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disengage the 2 claws to remove the steering column cover (upper side).
      GTY534586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
    NOTE:
    • Do not replace the spiral cable with the auxiliary battery connected and the power switch on (IG).
    • Do not rotate the spiral cable without the steering wheel with the auxiliary battery connected and the power switch on (IG).
    • Ensure that the steering wheel is installed and aligned straight when inspecting the steering sensor.
    • Do not remove the steering sensor from the spiral cable.
    1. Disconnect the connectors from the turn signal switch assembly with spiral cable sub-assembly.
    2. Using pliers, expand the clamp.

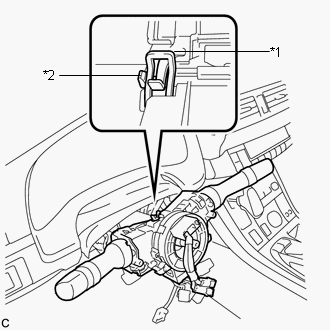

      GTY359489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Clamp
      *2 Claw
    3. While holding the clamp expanded, raise the claw using a screwdriver to disengage it, and then remove the turn signal switch assembly with spiral cable sub-assembly from the steering column assembly.
  6. REMOVE UPPER INSTRUMENT PANEL ASSEMBLY

    (See article. Refer to REMOVAL [08/2014 - ] )

  7. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    (See article. Refer to REMOVAL [08/2014 - ] )

  8. REMOVE STOP LIGHT SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 2

  9. REMOVE NO. 1 AIR DUCT SUB-ASSEMBLY
    1. Disengage the 2 claws to remove the No. 1 air duct sub-assembly.

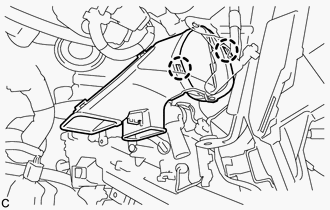

      GTY274882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE COLUMN HOLE COVER SILENCER SHEET
    1. Turn back the floor carpet.

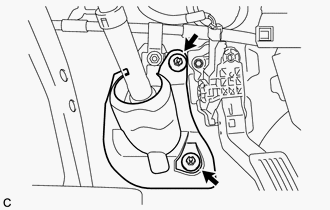

      GTY356783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 clips and column hole cover silencer sheet.
  11. SEPARATE NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY
    1. Put matchmarks on the No. 2 steering intermediate shaft assembly and steering intermediate shaft.
      GTY538376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Matchmark
    2. Remove the bolt.
    3. Separate the No. 2 steering intermediate shaft assembly from the steering intermediate shaft.
  12. REMOVE STEERING POST ASSEMBLY
    1. Disconnect the connector from the power steering ECU assembly.

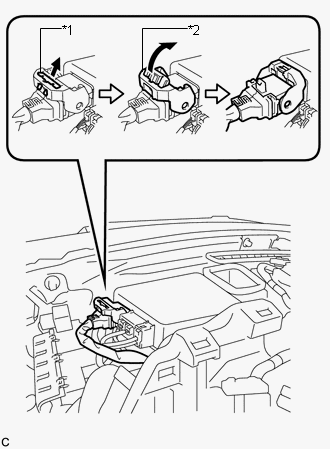

      GTY523432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Lock of Lock Lever
      *2 Lock Lever

      HINT:

      As shown in the illustration, pull out the lock of the lock lever and turn the lock lever to disconnect the connector.

    2. Disconnect the connector from the power steering ECU assembly.

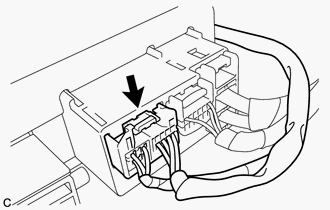

      GTY359420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 2 wire harness clamps.

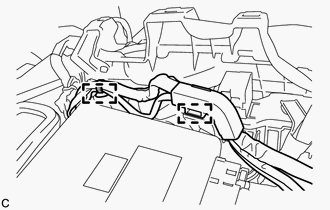

      GTY356782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the wire harness clamps from the steering post assembly.
    5. Remove the bolt, 2 nuts and steering post assembly.

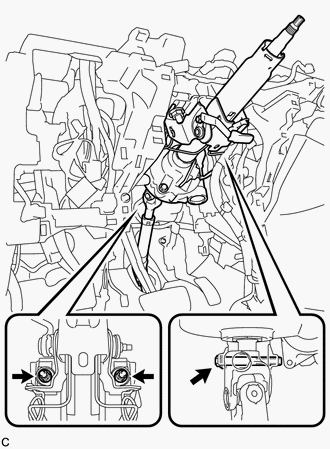

      GTY359413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY
    1. Put matchmarks on the No. 2 steering intermediate shaft assembly and steering column assembly.
      GTY528002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Matchmark
    2. Remove the bolt and No. 2 steering intermediate shaft assembly from the steering column assembly.
