DTC B1781: Front Occupant Classification Sensor RH Circuit Malfunction [08/2014 - ]: Wiring Diagram

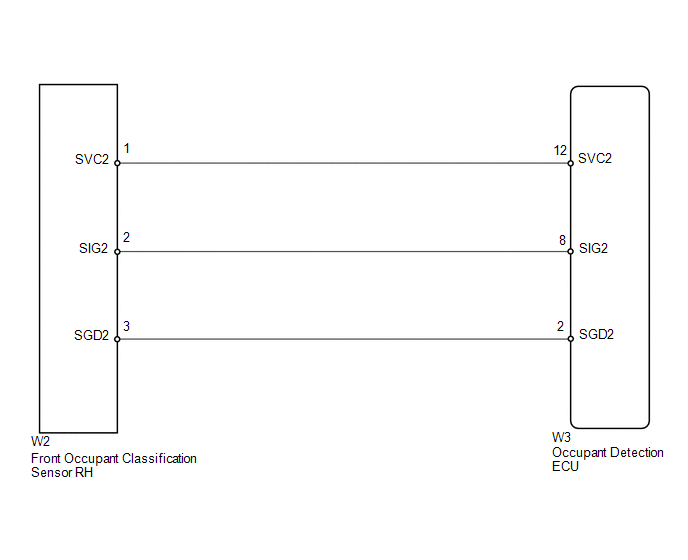

Fig 1: Identifying Occupant Detection ECU Wiring Diagram
GTY357839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
