DTC P085D-582: Gear Shift Control Module "A" Performance; DTC P085D-599: Gear Shift Control Module "A" Performance; DTC P0861-597: Gear Shift Control Module "A" Communication Circuit Low; DTC P0862-598: Gear Shift Control Module "A" Communication Circuit High [08/2014 - ]: Wiring Diagram

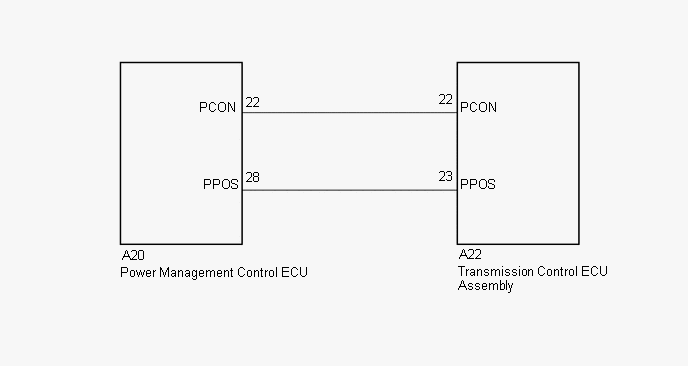

Fig 1: Transmission Control ECU Assembly Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
