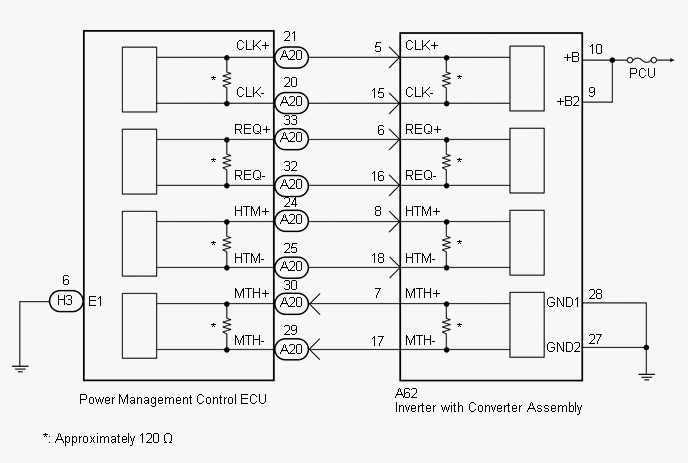

DTC U0110-159: Lost Communication with Driver Motor Control Module; DTC U0110-656: Lost Communication with Driver Motor Control Module; DTC U0110-657: Lost Communication with Driver Motor Control Module [08/2014 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
