DTC P0112: Intake Air Temperature Circuit Low Input; DTC P0113: Intake Air Temperature Circuit High Input [08/2014 - ]: Wiring Diagram

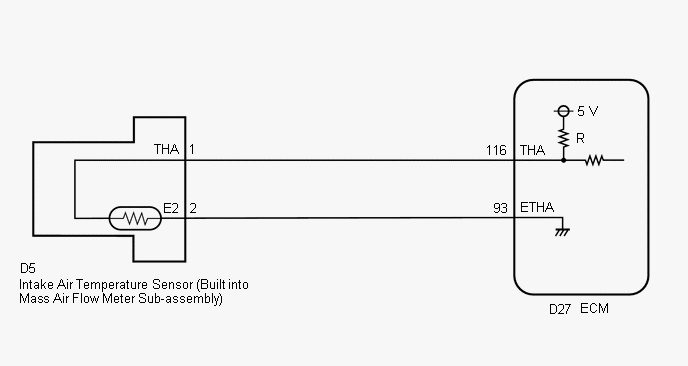

Fig 1: Intake Air Temperature Sensor Wiring Diagram
GTY523073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
