Instrument Panel Junction Block Assembly Inner Circuit

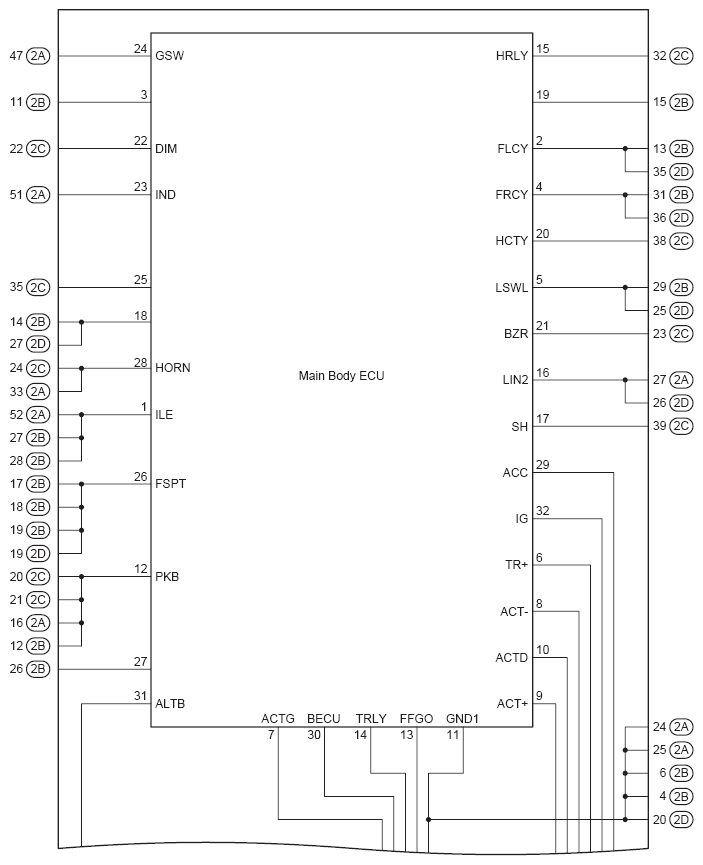

Fig 1: Instrument Panel J/B Assembly Inner Circuit Diagram (1 Of 5)
G09113506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

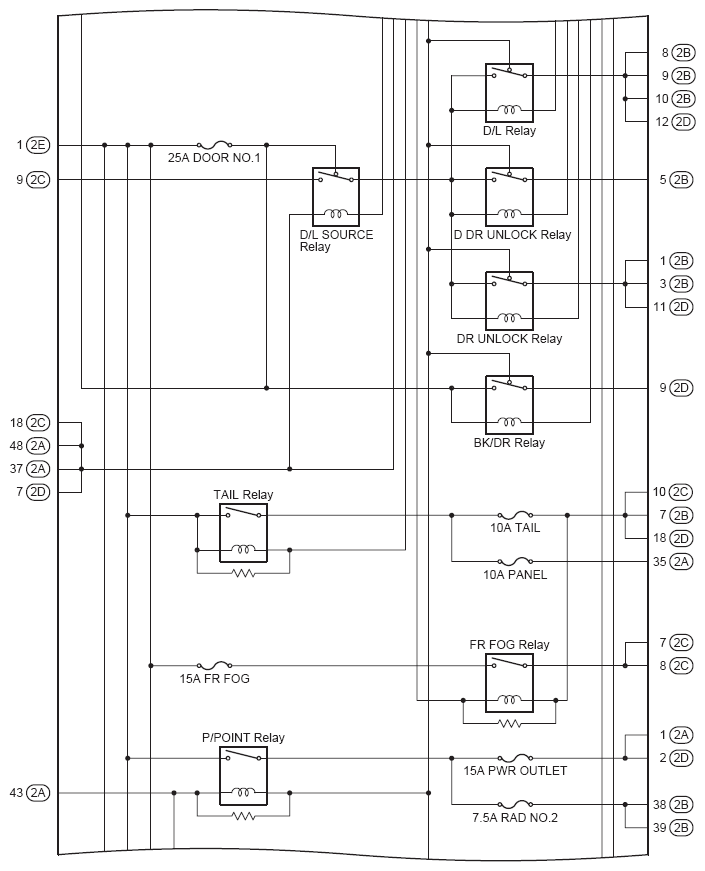

Fig 2: Instrument Panel J/B Assembly Inner Circuit Diagram & Relays (2 Of 5)
G09113507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTRUMENT PANEL J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
D/L Source Relay
D/L Source Relay
D DR Unlock Relay
DR Unlock Relay
BK/DR Relay
Tail Relay
FR Fog Relay
P/Point Relay

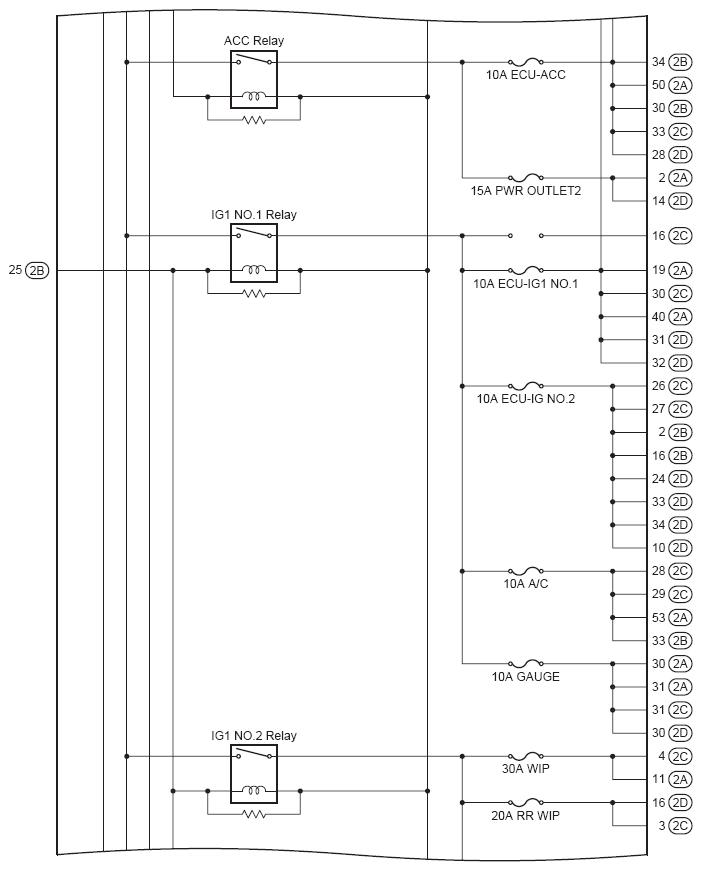

Fig 3: Instrument Panel J/B Assembly Inner Circuit Diagram & Relays (3 Of 5)
G09113508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTRUMENT PANEL J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
ACC Relay
IG1 No. 1 Relay
IG1 No. 2 Relay

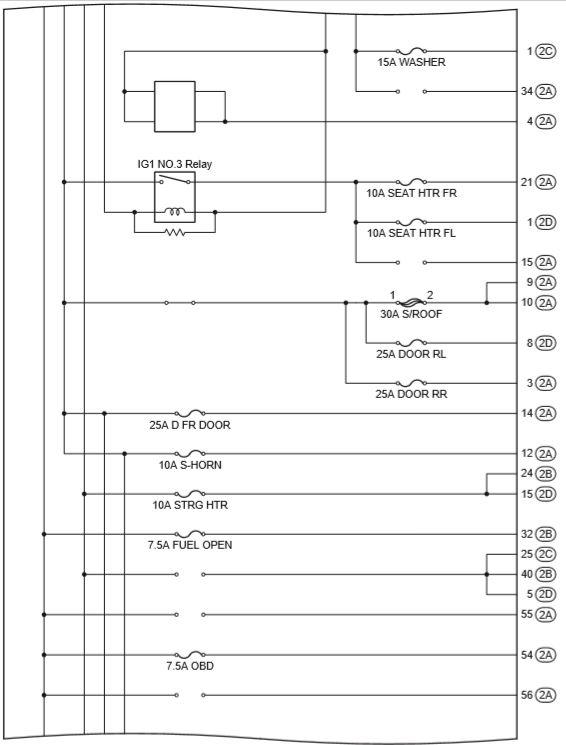

Fig 4: Instrument Panel J/B Assembly Inner Circuit Diagram & Relay (4 Of 5)
G00406093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTRUMENT PANEL J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
IG1 No. 3 Relay

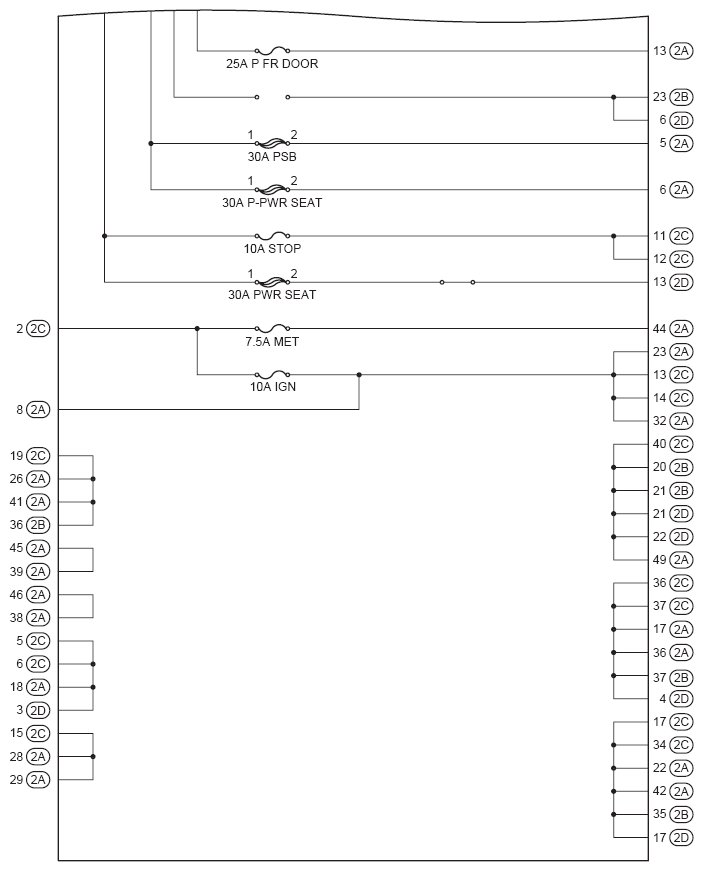

Fig 5: Instrument Panel J/B Assembly Inner Circuit Diagram (5 Of 5)
G09113510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
