Front Passenger Side Power Window Auto Up / Down Function does not Operate with Front Passenger Side Power Window Switch [08/2014 - ]: Wiring Diagram

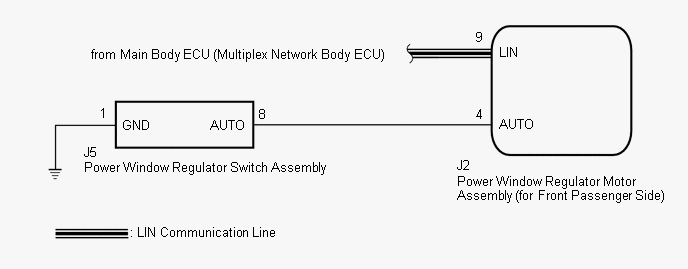

Fig 1: Power Window Regulator Motor Assembly (For Front Passenger Side) Wiring Diagram
GTY351934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
