Visual Mute Signal Circuit between Navigation Receiver Assembly and Multi-display [08/2014 - ]: Wiring Diagram

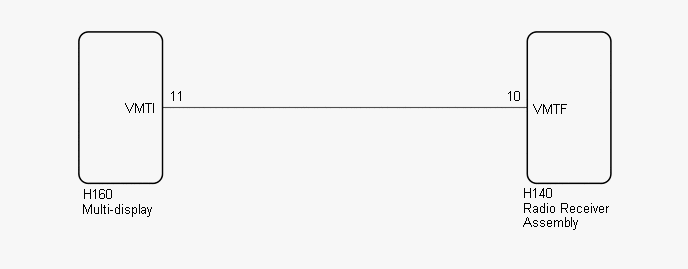

Fig 1: Radio Receiver Assembly & Multi-Display Wiring Diagram
GTY472064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
