Sound Signal Circuit between Navigation Receiver Assembly and Stereo Jack Adapter [08/2014 - ]: Wiring Diagram

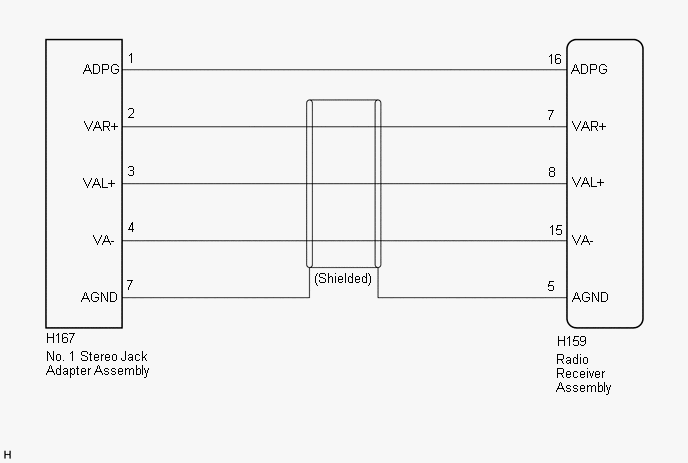

Fig 1: Radio Receiver & Stereo Jack Wiring Diagram
GTY535802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
