Navigation Receiver Assembly Power Source Circuit [08/2014 - ]: Wiring Diagram

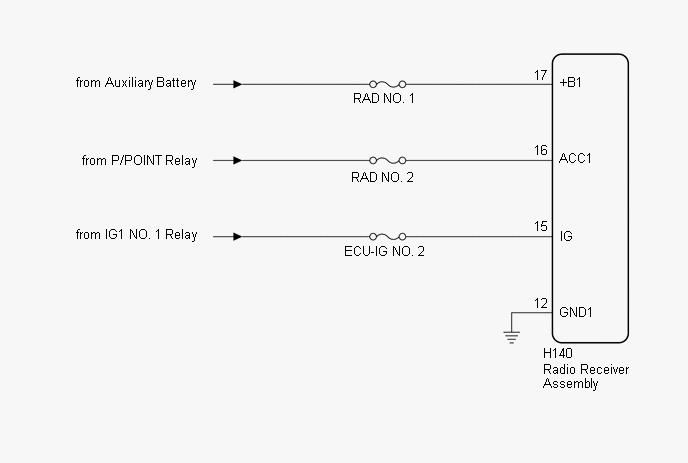

Fig 1: Navigation Receiver Assembly Power Source Wiring Diagram

GTY527202

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
