Microphone Circuit between Microphone and Navigation Receiver Assembly [08/2014 - ]: Wiring Diagram

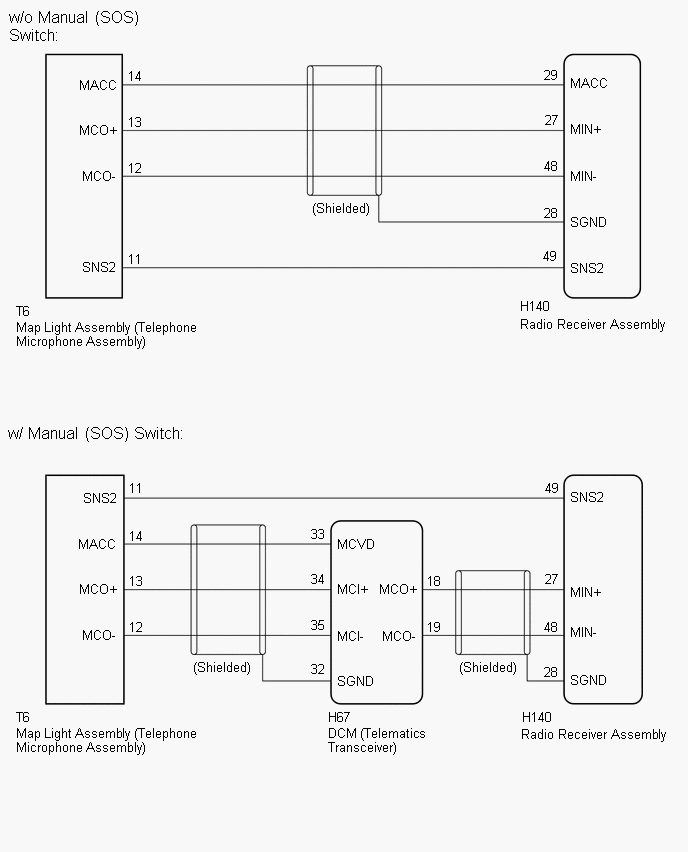

Fig 1: Microphone and Navigation Receiver Assembly Wiring Diagram
GTY476260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
