Data Signal Circuit between Navigation Receiver Assembly and Stereo Jack Adapter [08/2014 - ]: Procedure

1. Disconnect the H173 radio receiver assembly connector.
2. Disconnect the H174 No. 1 stereo jack adapter assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION

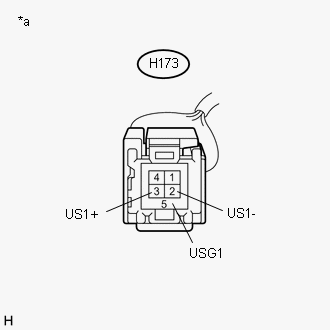

   *a	Front view of wire harness connector (to Radio Receiver Assembly)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION

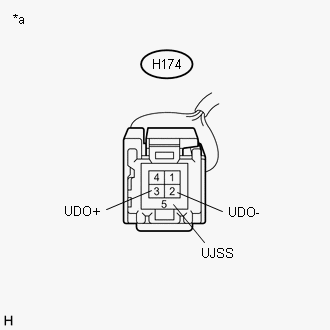

   *a	Front view of wire harness connector (to No. 1 Stereo Jack Adapter Assembly)

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H173-2 (US1-) - H174-2 (UDO-)	Always	Below 1 Ω
   H173-3 (US1+) - H174-3 (UDO+)	Always	Below 1 Ω
   H173-5 (USG1) - H174-5 (UJSS)	Always	Below 1 Ω
   H173-2 (US1-) - Body ground	Always	10 kΩ or higher
   H173-3 (US1+) - Body ground	Always	10 kΩ or higher
   H173-5 (USG1) - Body ground	Always	10 kΩ or higher

Result:  OK

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

(See article. Refer to PROBLEM SYMPTOMS TABLE [08/2014 - ] )

Result:  NG

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
