DCM Data Signal Circuit between Navigation ECU and DCM [08/2014 - ]: Wiring Diagram

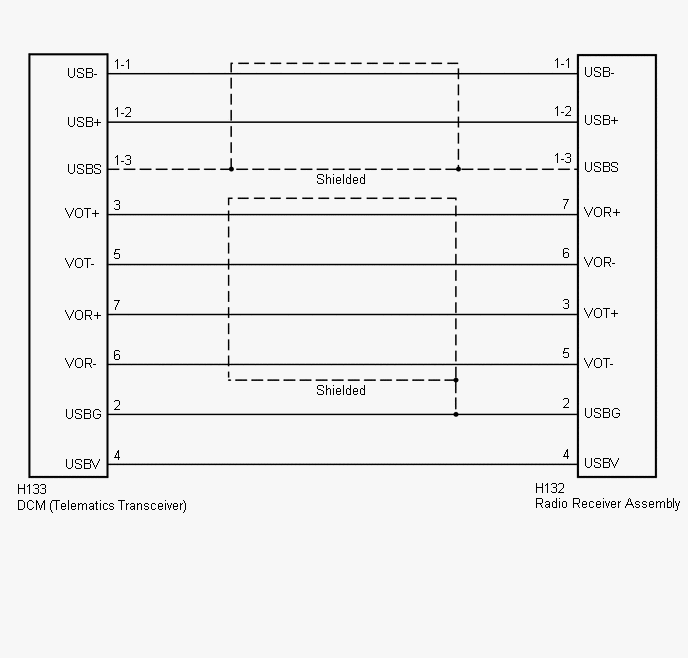

Fig 1: DCM Data Signal Circuit Between Navigation ECU And DCM [08/2014 - ] Wiring Diagram
GTY531122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
