Steering Angle Sensor Communication Stop Mode [08/2014 - ]: Wiring Diagram

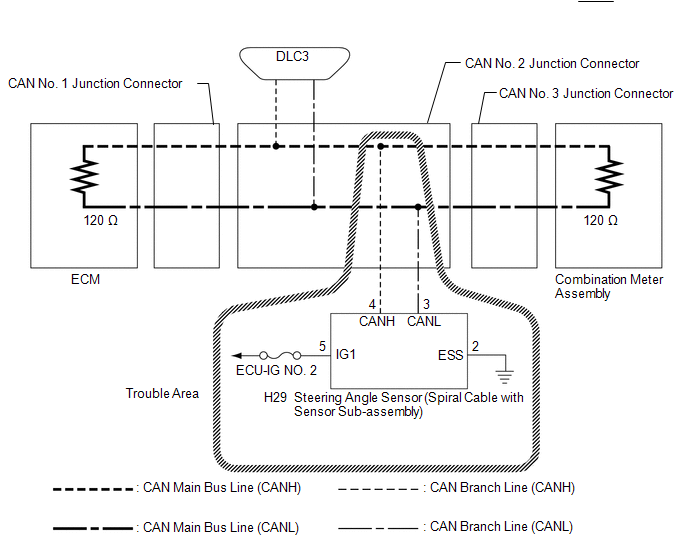

Fig 1: Steering Angle Sensor Communication Stop Mode Wiring Diagram

GTY347704

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
