Steering Angle Sensor Communication Stop Mode [08/2014 - ]: Procedure
- CHECK CAN BUS LINE FOR DISCONNECTION (STEERING ANGLE SENSOR BRANCH WIRE)
- Turn the power switch off.
- Disconnect the steering angle sensor connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

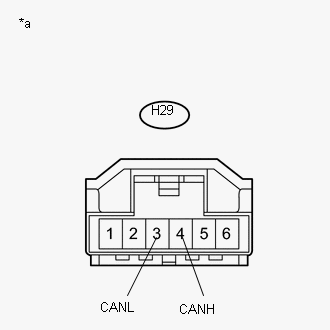

Tester Connection Switch Condition Specified Condition H29-4 (CANH) - H29-3 (CANL) Power switch off 54 to 69 Ω TEXT IN ILLUSTRATION*a Front view of wire harness connector
(to Steering Angle Sensor)
Result: NG
NG
REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (STEERING ANGLE SENSOR)
Result: OK
OK
See step 2
- CHECK HARNESS AND CONNECTOR (POWER SOURCE TERMINAL)
- Measure the voltage according to the value(s) in the table below.
Standard Voltage

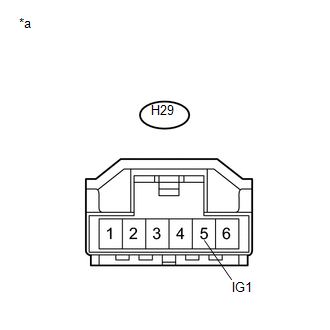

Tester Connection Switch Condition Specified Condition H29-5 (IG1) - Body ground Power switch on (IG) 11 to 14 V TEXT IN ILLUSTRATION*a Front view of wire harness connector
(to Steering Angle Sensor)
Result: NG
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
Result: OK
OK
See step 3
- Measure the voltage according to the value(s) in the table below.
- CHECK HARNESS AND CONNECTOR (GROUND TERMINAL)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

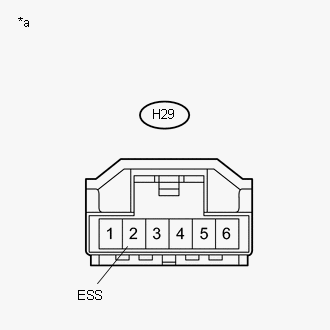

Tester Connection Condition Specified Condition H29-2 (ESS) - Body ground Always Below 1 Ω TEXT IN ILLUSTRATION*a Front view of wire harness connector
(to Steering Angle Sensor)
Result: OK
OK
REPLACE SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
(See article. Refer to REMOVAL [08/2014 - ] )
Result: NG
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (GROUND CIRCUIT)
- Measure the resistance according to the value(s) in the table below.
