Radio Receiver Assembly Communication Stop Mode [08/2014 - ]: Wiring Diagram

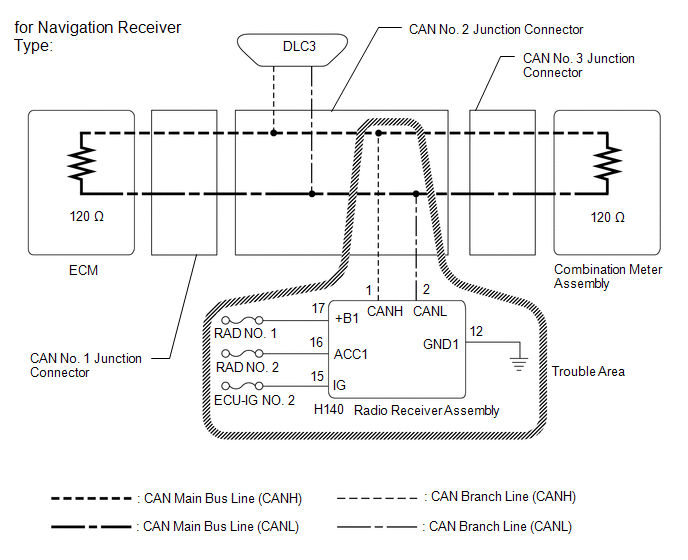

Fig 1: Radio Receiver Assembly Wiring Diagram (1 Of 2)
GTY534397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

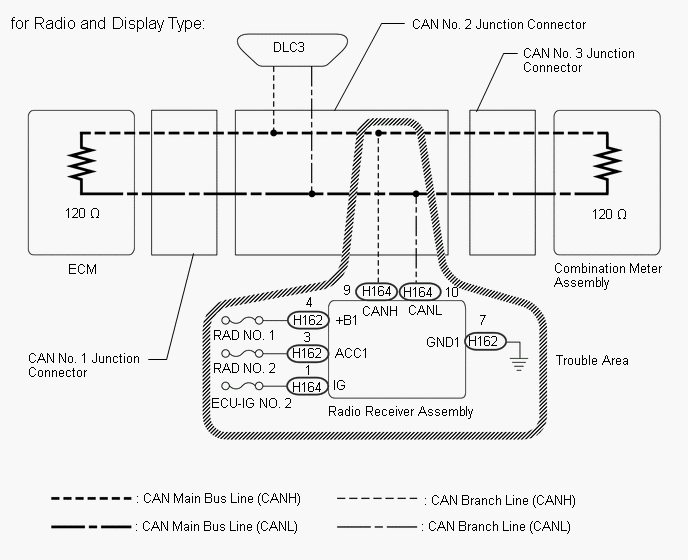

Fig 2: Radio Receiver Assembly Wiring Diagram (2 Of 2)
GTY522842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
