Power Management Control ECU Communication Stop Mode [08/2014 - ]: Procedure

1. Turn the power switch off.
2. Disconnect the H4 power management control ECU connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Switch Condition	Specified Value
   H4-25 (CA1H) - H4-24 (CA1L)	Power switch off	54 to 69 Ω

   TEXT IN ILLUSTRATION



   *a	Rear view of wire harness connector (to Power Management Control ECU)

Result:  NG

NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (POWER MANAGEMENT CONTROL ECU)

Result:  OK

OK

See step  2

1. Reconnect the H4 power management control ECU connector.
2. Measure the voltage according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Voltage

   Tester Connection	Switch Condition	Specified Value
   A20-5 (+B1) - Body ground	Power switch on (IG)	11 to 14 V
   A19-2 (+B2) - Body ground	Power switch on (IG)	11 to 14 V

   TEXT IN ILLUSTRATION

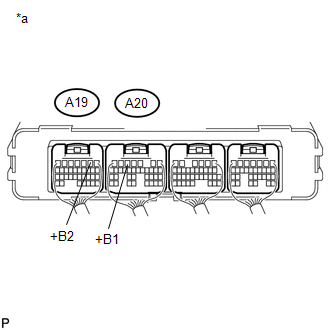

   *a	Component with harness connected (Power Management Control ECU)

Result:  NG

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE TERMINAL)

Result:  OK

OK

See step  3

1. Disconnect the H3 power management control ECU connector.
2. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Value
   H3-6 (E1) - Body ground	Always	Below 1 Ω

   TEXT IN ILLUSTRATION



   *a	Rear view of wire harness connector (to Power Management Control ECU)

Result:  OK

OK

REPLACE POWER MANAGEMENT CONTROL ECU

(See article. Refer to REMOVAL [08/2014 - ] )

Result:  NG

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (GROUND TERMINAL)
