Back Door Entry Lock Function does not Operate [08/2014 - ]: Procedure

1. When the door control switch on the multiplex network master switch assembly is operated, check that the doors unlock and lock according to the switch operation (See article. Refer to OPERATION CHECK [08/2014 - ] ).

   OK

   Door locks operate normally.

Result:  NG

NG

GO TO POWER DOOR LOCK CONTROL SYSTEM

(See article. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [08/2014 - ] )

Result:  OK

OK

See step  2

1. Using the Techstream, read the Data List (See article. Refer to DATA LIST / ACTIVE TEST [08/2014 - ] ).
   SMART ACCESS



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Tr/B-Door Lock SW	Back door opener switch (lock switch) / ON or OFF	ON: Back door opener switch (lock switch) pushed OFF: Back door opener switch (lock switch) not pushed	Displays whether the back door opener switch assembly (lock switch) is on or off. Use this Data List item to help determine if there is a switch malfunction when the back door lock function does not operate.

   OK

   The Techstream display changes correctly in response to the operation of the back door opener switch assembly.

Result:  OK

OK

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

(See article. Refer to REMOVAL [08/2014 - ] )

Result:  NG

NG

See step  3

1. Disconnect the V4 back door opener switch assembly connector.
2. Disconnect the H1 certification ECU (smart key ECU assembly) connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   V4-1 (L) - H1-23 (TSW6)	Always	Below 1 Ω
   V4-2 (E) - Body ground	Always	Below 1 Ω
   V4-1 (L) or H1-23 (TSW6) - Body ground	Always	10 kΩ or higher

Result:  NG

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:  OK

OK

See step  4

1. Remove the back door opener switch assembly (See article. Refer to REMOVAL [08/2014 - ] ).

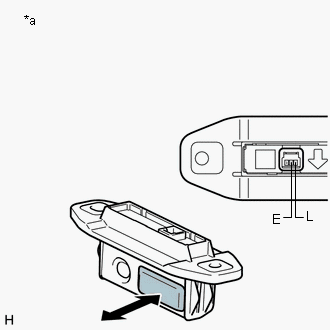

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *a	Component without harness connected (Back Door Opener Switch Assembly)

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Switch Condition	Specified Condition
   1 (L) - 2 (E)	No switch pushed	10 kΩ or higher
   1 (L) - 2 (E)	Lock switch pushed	Below 1 Ω

Result:  OK

OK

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

(See article. Refer to REMOVAL [08/2014 - ] )

Result:  NG

NG

REPLACE BACK DOOR OPENER SWITCH ASSEMBLY

(See article. Refer to REMOVAL [08/2014 - ] )
