Removal [08/2016 - 08/2019]: Procedure

Refer to REMOVAL [08/2016 - 08/2019]

Refer to PROCEDURE - Step 2

See step  2

for U881F: Refer to PROCEDURE - Step 4

for U881E: Refer to PROCEDURE - Step 4

for U881F: Refer to PROCEDURE - Step 5

for U881E: Refer to PROCEDURE - Step 5

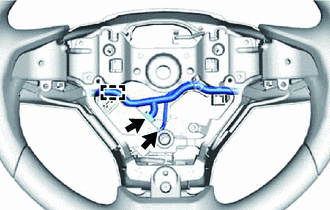

1. Disengage the guide to remove the wire harness from the lower steering wheel cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect each connector.
3. w/o Shift Paddle Switch:
   1. Remove the 2 screws.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

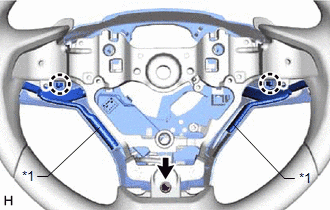

4. Remove the screw.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Heater Thermistor

5. Disengage the 2 claws of the lower steering wheel boss cover.
   NOTE:

   If the heater thermistor comes off the lower steering wheel cover, replace the steering wheel assembly.

   HINT:

   Do not remove the lower steering wheel boss cover from the steering wheel sub-assembly. Loosen the lower steering boss cover.

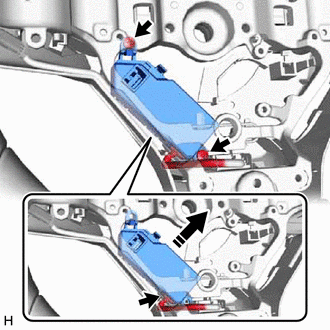

6. Remove the 2 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

7. Move the steering vibration and heater ECU until it reaches a position where the connector can be disconnected.
8. Disconnect the connector to remove the steering vibration and heater ECU from the lower steering wheel cover.
