Components [09/2014 - ]

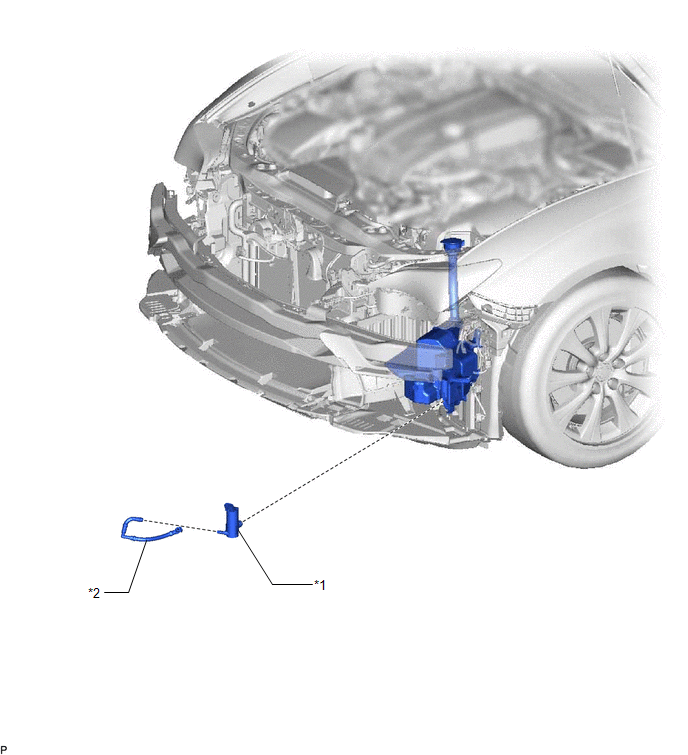

Fig 1: Headlight Cleaner Motor Replacement Components
GTY517381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 HEADLIGHT CLEANER MOTOR AND PUMP ASSEMBLY *2 HEADLIGHT CLEANER HOSE
