System Diagram [09/2014 - ]

  1. Power Door Lock Control System

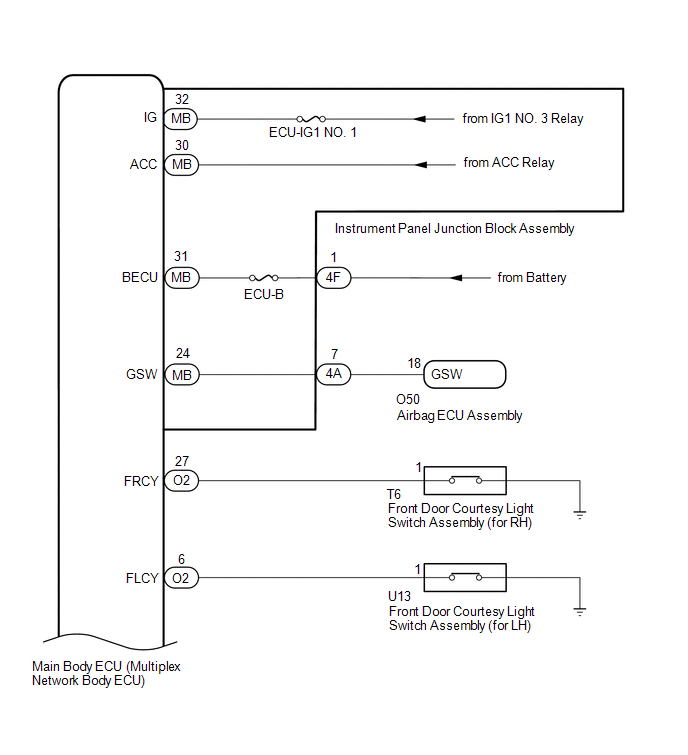

    GTY513265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GTY509958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

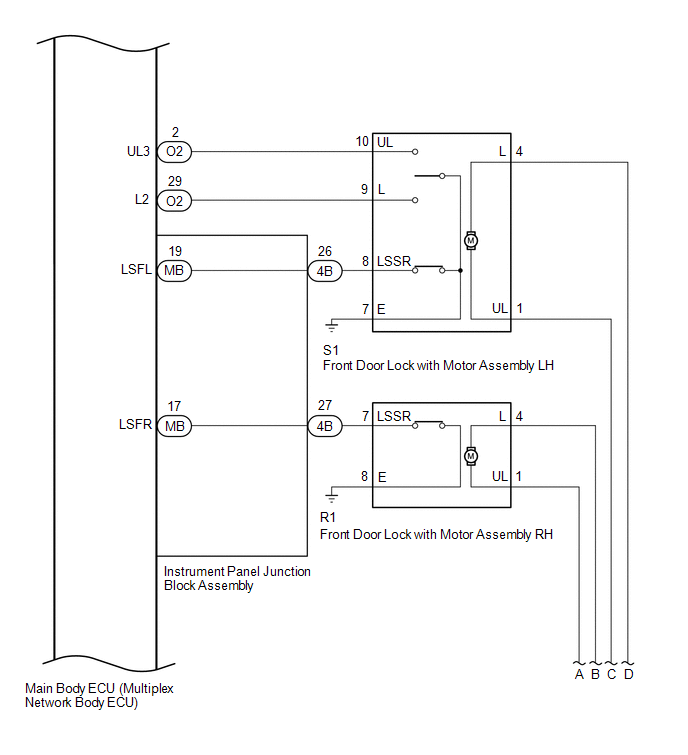

    GTY496659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

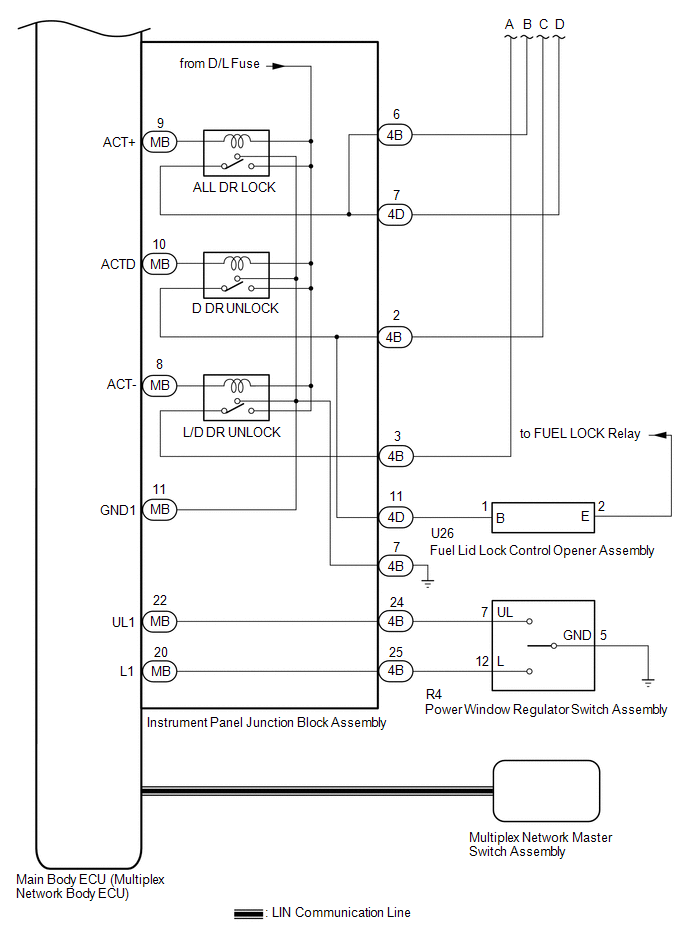

    GTY502315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    COMMUNICATION TABLE

    Sender Receiver Signal Line
    Multiplex Network Master Switch Assembly Main Body ECU (Multiplex Network Body ECU) Door control switch signal LIN
