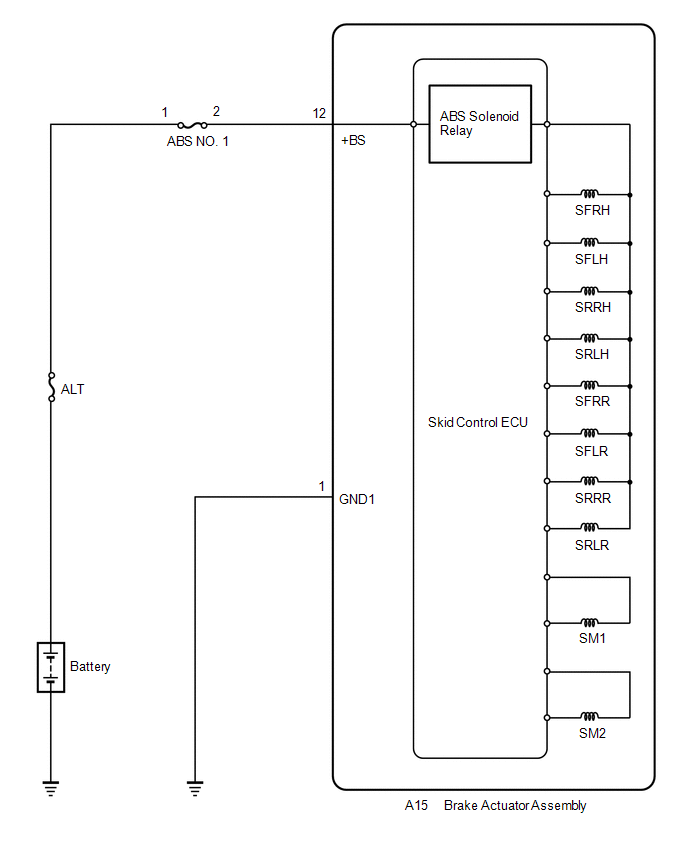

DTC C146E: Open in ABS Solenoid Relay Circuit; DTC C146F: Short in ABS Solenoid Relay Circuit [09/2014 - 11/2017]: Wiring Diagram

GTY459699

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
