Replacement [09/2014 - 10/2018]: Procedure

  1. SEPARATE LUGGAGE COMPARTMENT DOOR COVER

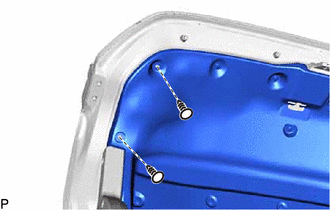

    1. Using a clip remover, remove the 2 clips.
      GTY501030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn back the luggage compartment door cover as shown in the illustration.
      GTY518277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE BACK-UP LIGHT BULB

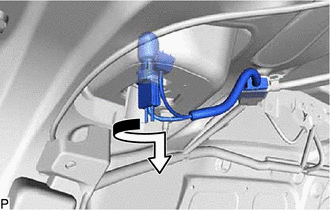

    1. Turn the rear light socket and wire with the back-up light bulb as shown in the illustration to disconnect them as a unit.
      GTY501028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the back-up light bulb from the rear light socket and wire.
      GTY501059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL BACK-UP LIGHT BULB
    1. Install a new back-up light bulb to the rear light socket and wire.
      GTY501059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

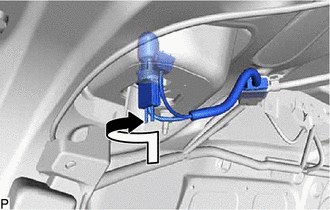

    2. Turn the rear light socket and wire with the back-up light bulb as shown in the illustration to connect them as a unit.
      GTY501032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL LUGGAGE COMPARTMENT DOOR COVER
    1. Install the luggage compartment door cover to its original position as shown in the illustration.
      GTY501027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 2 clips.
      GTY501030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
