Removal [10/2014 - ]: Procedure

  1. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL

    Refer to PROCEDURE - Step 5 [10/2014 - 05/2019] , or refer to PROCEDURE - Step 5 [05/2019 - ]

  2. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY

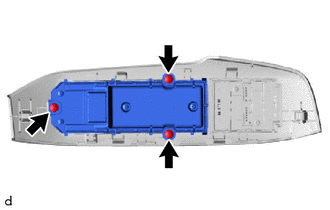

    1. GTY515018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 3 screws and multiplex network master switch assembly.
