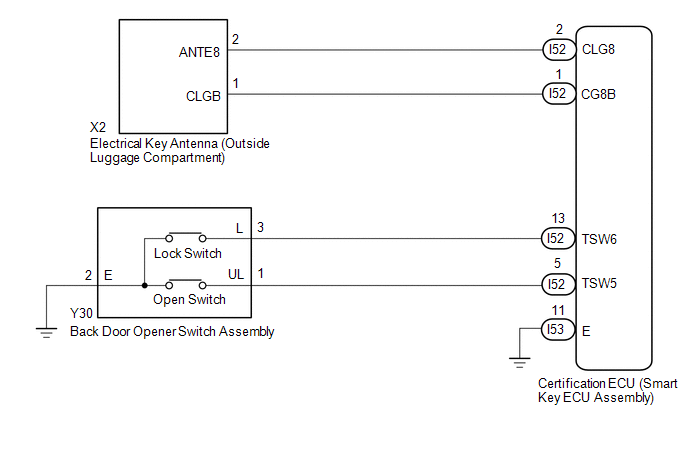

Back Door Entry Lock and Unlock Functions do not Operate [01/2019 - ]: Wiring Diagram

GTY949093

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
