Inspection [09/2015 - ]: Procedure

  1. REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY

    Refer to REMOVAL [09/2015 - ]

  2. INSPECT INTEGRATION CONTROL AND PANEL ASSEMBLY (4WD CONTROL SWITCH)
    1. Measure the resistance according to the value(s) in the table below.

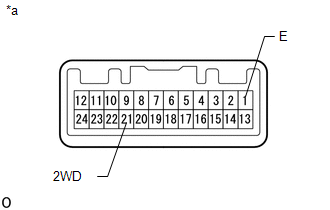

      GTY637830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      1 (E) - 21 (2ND) H4 Position 10 kΩ or higher
      L4 Position Below 1 Ω
      TEXT IN ILLUSTRATION

      * a Component without harness connected
      (Integration Control and Panel Assembly)

      If the result is not as specified, replace the integration control and panel assembly.

  3. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY

    Refer to INSTALLATION [09/2015 - ]
