Components [09/2015 - ]

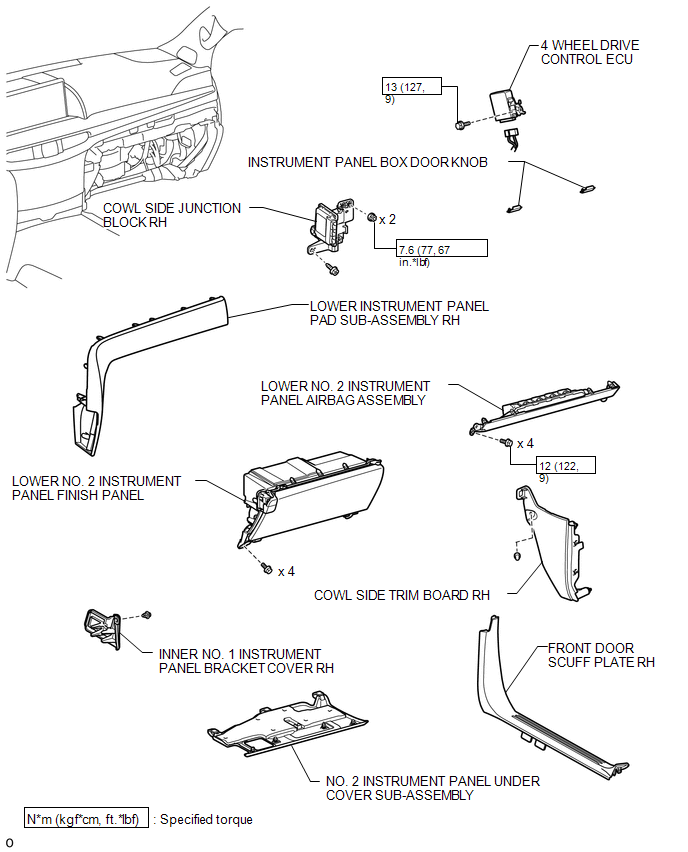

Fig 1: 4WD Control ECU Replacement Components With Torque Specifications

GTY639567

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
