Components [09/2015 - ]

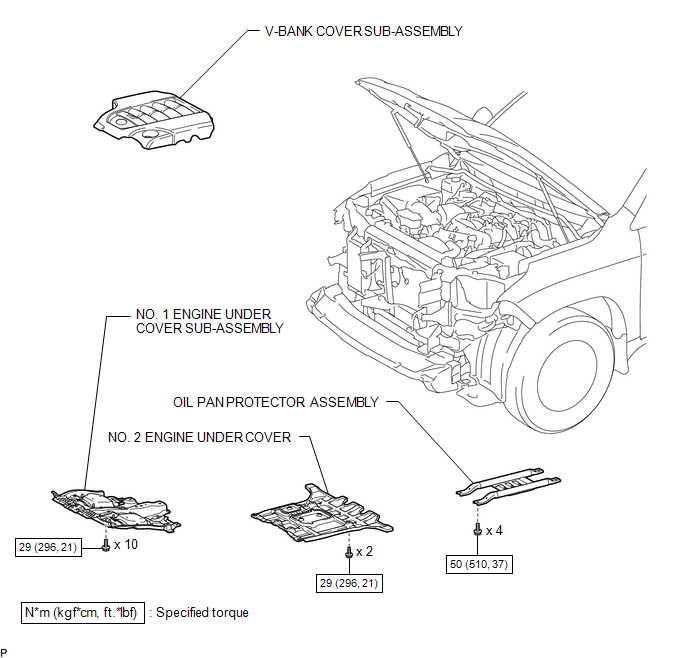

Fig 1: Engine Assembly Replacement Components With Torque Specifications (1 Of 11)
GTY652433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

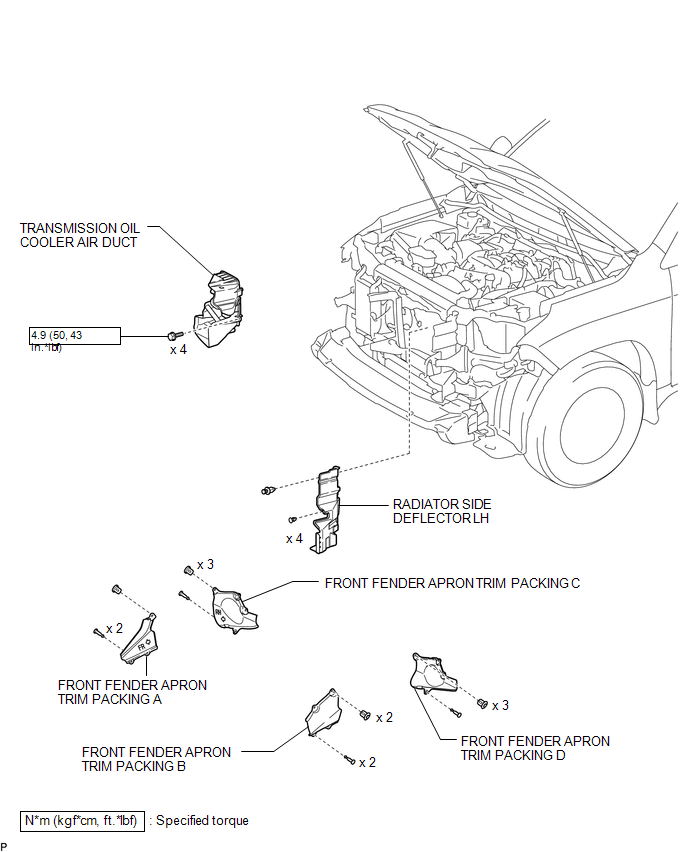

Fig 2: Engine Assembly Replacement Components With Torque Specifications (2 Of 11)
GTY662562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

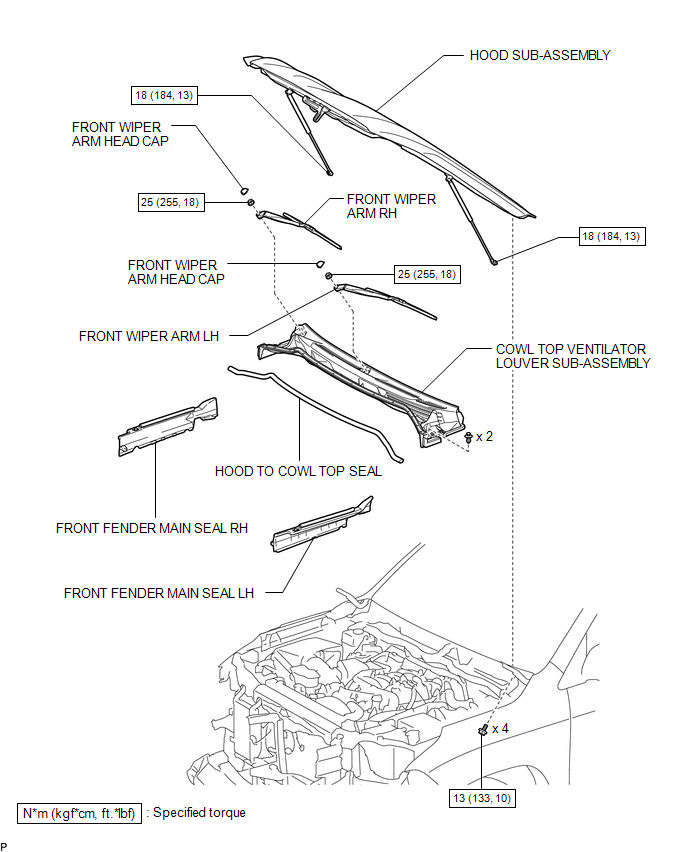

Fig 3: Engine Assembly Replacement Components With Torque Specifications (3 Of 11)
GTY671672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

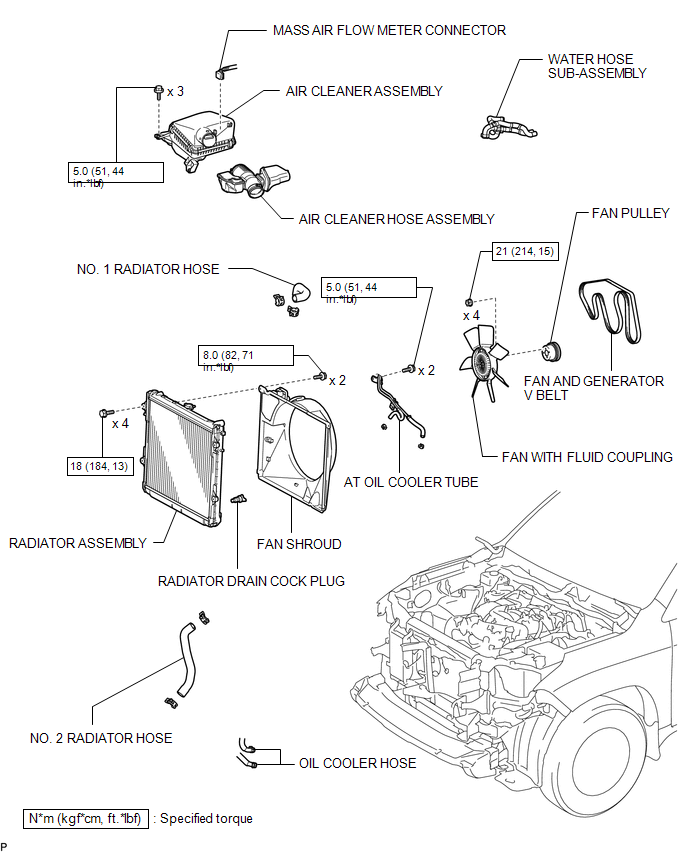

Fig 4: Engine Assembly Replacement Components With Torque Specifications (4 Of 11)
GTY964516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

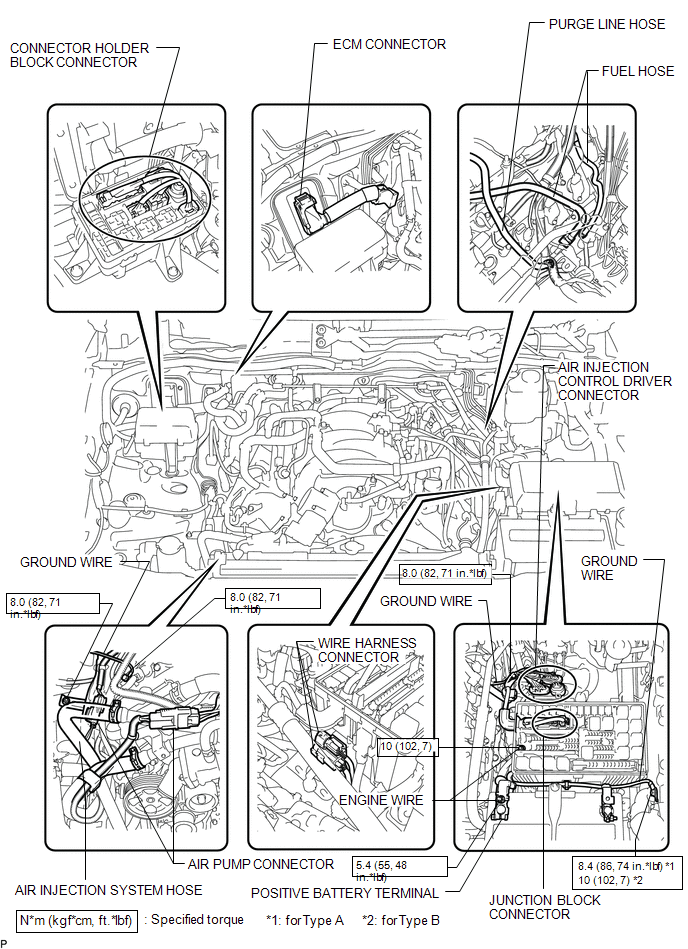

Fig 5: Engine Assembly Replacement Components With Torque Specifications (5 Of 11)
GTY780076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

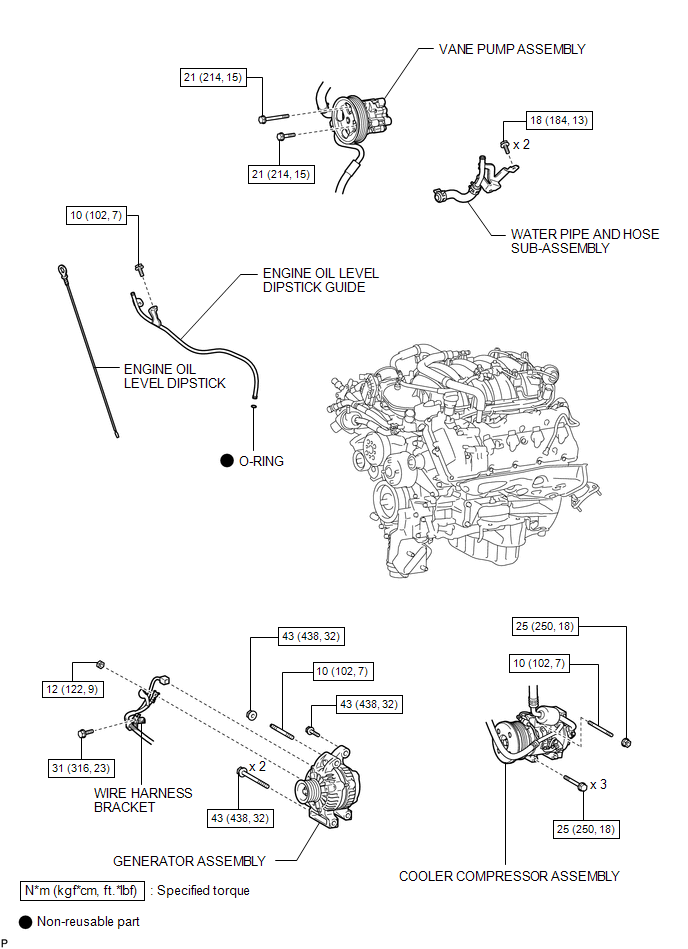

Fig 6: Engine Assembly Replacement Components With Torque Specifications (6 Of 11)
GTY666551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

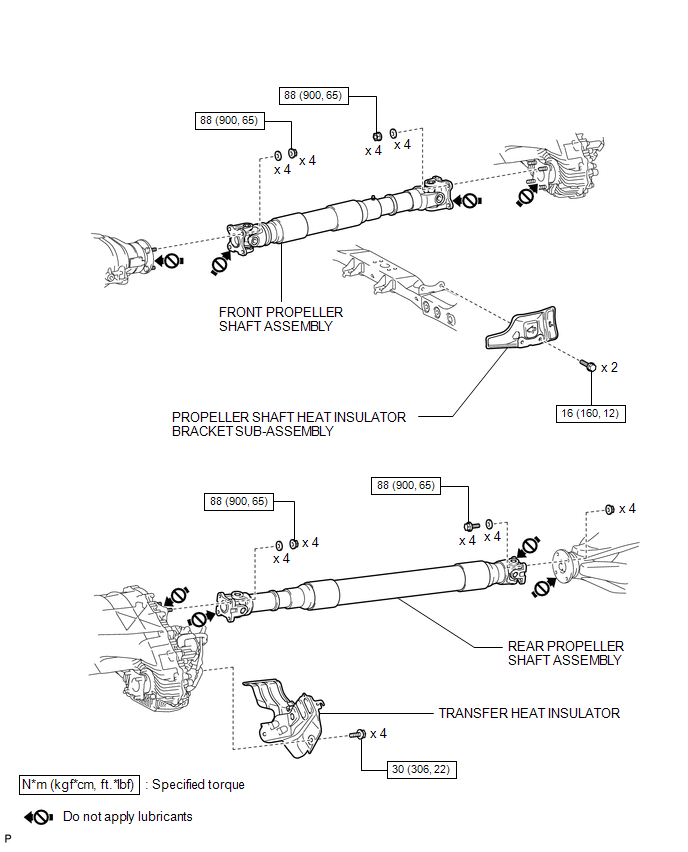

Fig 7: Engine Assembly Replacement Components With Torque Specifications (7 Of 11)
GTY621250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

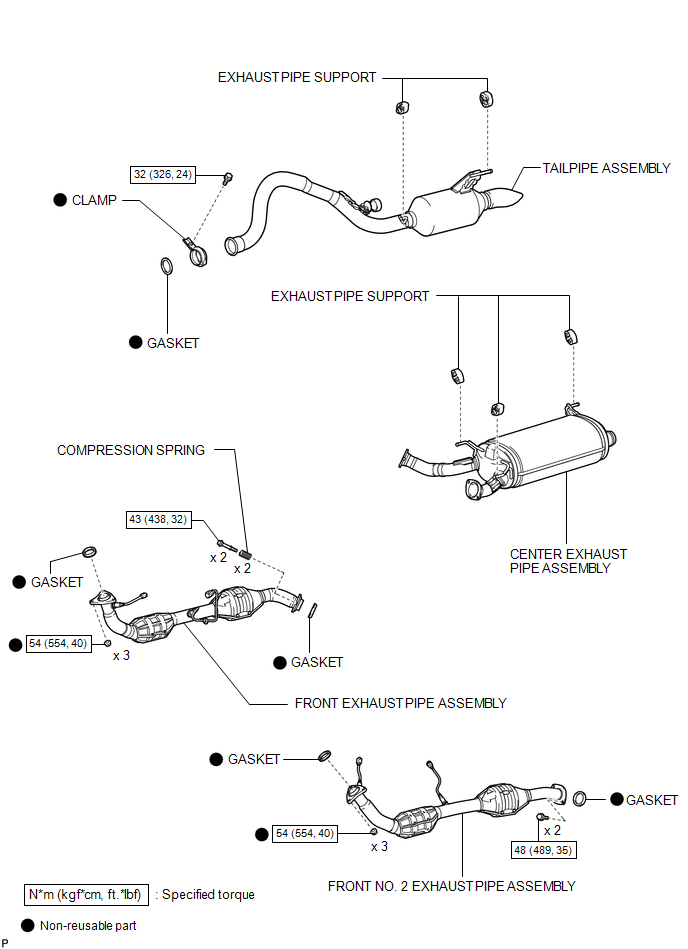

Fig 8: Engine Assembly Replacement Components With Torque Specifications (8 Of 11)
GTY654917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 9: Engine Assembly Replacement Components With Torque Specifications (9 Of 11)
GTY678954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 10: Engine Assembly Replacement Components With Torque Specifications (10 Of 11)
GTY829993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

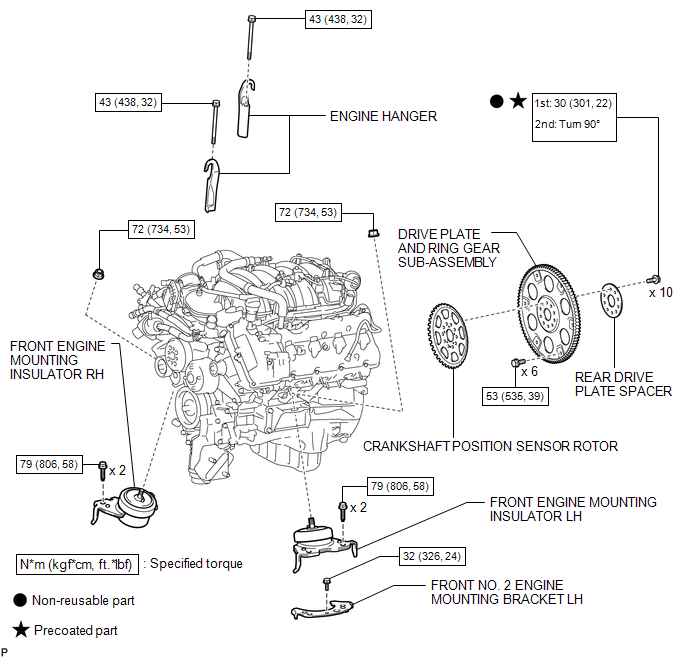

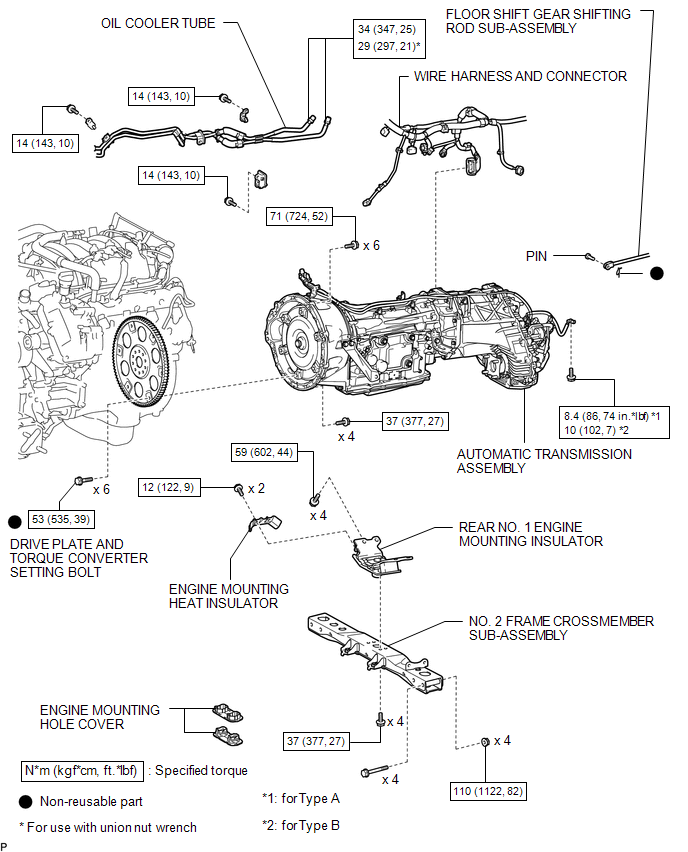

Fig 11: Engine Assembly Replacement Components With Torque Specifications (11 Of 11)
GTY649005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
