ACIS Control Circuit [09/2015 - ]: Description

This circuit opens and closes the Intake Air Control Valve (IACV) in response to the engine load in order to increase the intake efficiency (ACIS: Acoustic Control Induction System).

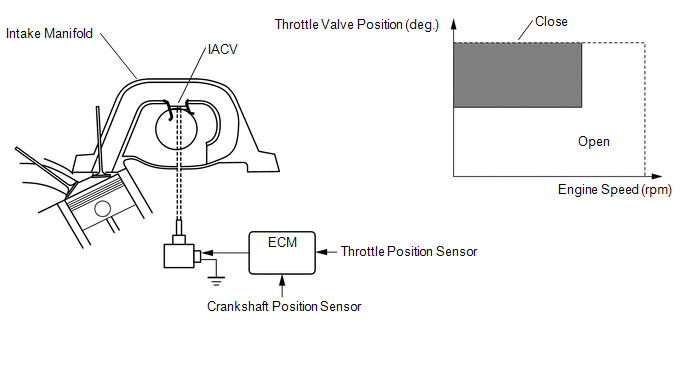

Fig 1: ACIS Control System Diagram
