DTC B2289: Key Collation Waiting Time Over [09/2015 - ]: Procedure

1. Clear the DTCs (Refer to DTC CHECK / CLEAR [09/2015 - ] ).
2. Check whether DTC B2289 recurs.
   RESULT



   Display (DTC output)	Proceed to
   B2289	A
   No DTC output	B

Result:  B

B

USE SIMULATION METHOD TO CHECK

(Refer to HOW TO PROCEED WITH TROUBLESHOOTING [09/2015 - ] )

Result:  A

A

See step  2

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

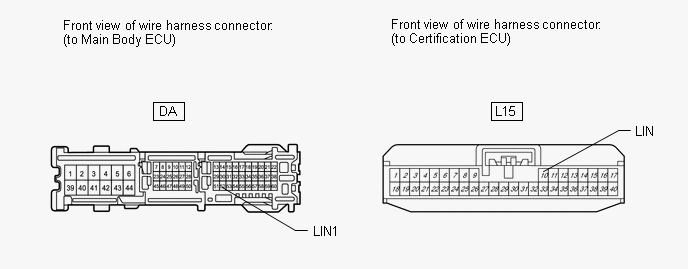

1. Disconnect the DA main body ECU connector.
2. Disconnect the L15 certification ECU connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   DA-52 (LIN1) - L15-10 (LIN)	Always	Below 1 Ω
   DA-52 (LIN1) or L15-10 (LIN) - Body ground	Always	10 kΩ or higher

Result:  NG

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:  OK

OK

See step  3

1. Temporarily replace the main body ECU with a new or normally functioning one.
2. Check whether DTC B2289 recurs.

   OK

   No DTC is output.

Result:  OK

OK

END (MAIN BODY ECU IS FAULTY)

Result:  NG

NG

GO TO SMART ACCESS SYSTEM WITH PUSH-BUTTON START (ROOM OSCILLATOR DOES NOT RECOGNIZE KEY)

(Refer to Room Oscillator does not Recognize Key [09/2015 - ] )
