Rear Door RH Entry Unlock Function does not Operate [09/2015 - ]: Procedure

1. When the master switch assembly's door control switch is operated, check that the locked doors unlock (Refer to OPERATION CHECK [09/2015 - ] ).

   OK

   Locked doors unlock.

Result:  NG

NG

GO TO POWER DOOR LOCK CONTROL SYSTEM

(Refer to PROBLEM SYMPTOMS TABLE [09/2015 - ] )

Result:  OK

OK

See step  2

1. Using the Techstream, read the Data List (Refer to DATA LIST / ACTIVE TEST [09/2015 - ] ).
   REAR RIGHT DOOR



   Tester Display	Measurement Item/Display	Normal Condition	Diagnostic Note
   Lock Position SW	Rear door RH lock position switch signal / ON or OFF	ON: Rear door RH is unlocked OFF: Rear door RH is locked	-

   OK

   On the Techstream screen, item changes between ON and OFF according to above chart.

Result:  NG

NG

GO TO POWER DOOR LOCK CONTROL SYSTEM (Proceed to Only Rear Door RH LOCK/UNLOCK Functions do not Operate)

(Refer to PROBLEM SYMPTOMS TABLE [09/2015 - ] )

Result:  OK

OK

See step  3

1. Using the Techstream, read the Data List (Refer to DATA LIST / ACTIVE TEST [09/2015 - ] ).
   REAR RIGHT DOOR



   Tester Display	Measurement Item/Display	Normal Condition	Diagnostic Note
   Entry Sensor	Rear RH side door touch sensor / ON or OFF	ON: Rear RH side door sensor is touched OFF: Rear RH side door sensor is not touched	-

   OK

   On the Techstream screen, item changes between ON and OFF according to above chart.

Result:  NG

NG

See step  5

Result:  OK

OK

See step  4

1. Replace the rear door ECU RH with a new one or normally functioning one (Refer to COMPONENTS [09/2015 - ] ).
2. Check that the entry function operates normally (Refer to OPERATION CHECK [09/2015 - ] ).

   OK

   Operates normally

Result:  OK

OK

END (REAR DOOR ECU RH IS DEFECTIVE)

Result:  NG

NG

REPLACE CERTIFICATION ECU

(Refer to REMOVAL [09/2015 - ] )

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

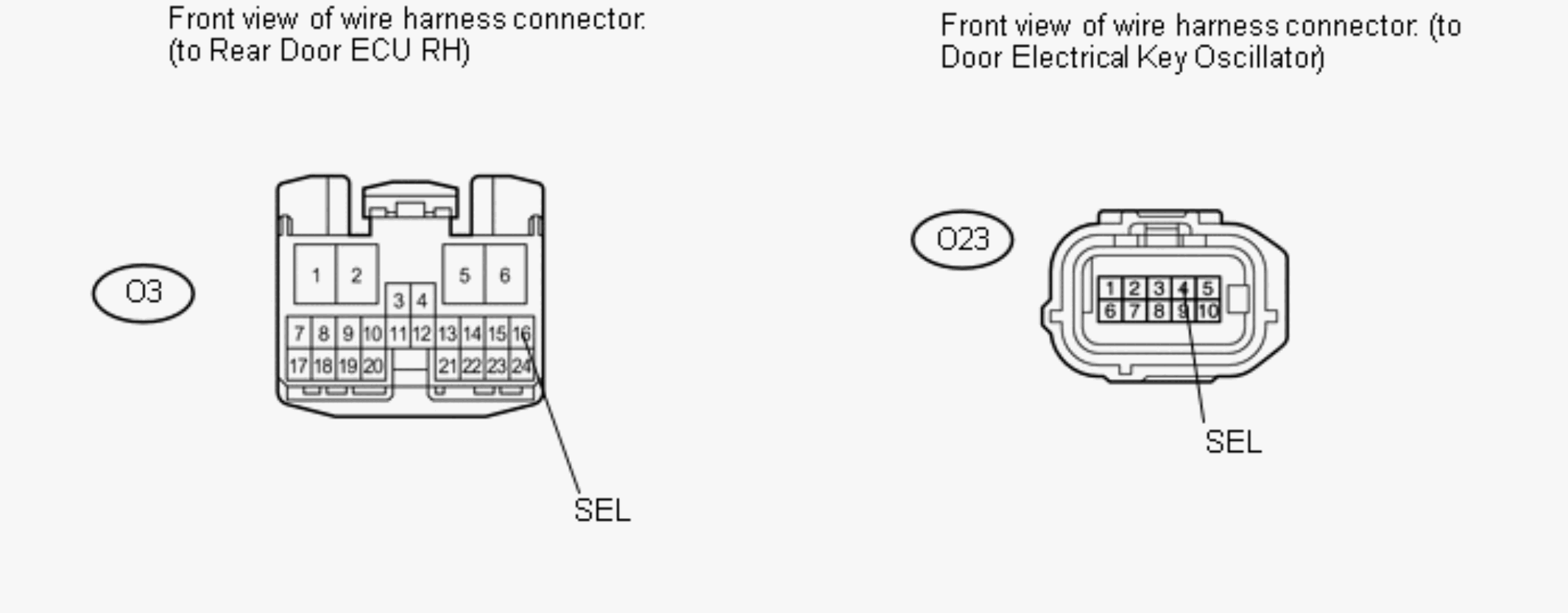

1. Disconnect the O3 ECU connector.
2. Disconnect the O25 oscillator connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   O3-16 (SEL) - O25-4 (SEL)	Always	Below 1 Ω
   O3-16 (SEL) - Body ground	Always	10 kΩ or higher

Result:  NG

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:  OK

OK

See step  6

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the O25 oscillator connector.
2. Disconnect the O24 handle connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   O25-2 (SGT6) - O24-6 (SGT5)	Always	Below 1 Ω
   O25-2 (SGT6) - Body ground	Always	10 kΩ or higher

Result:  NG

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:  OK

OK

See step  7

1. Replace the door electrical key oscillator with a new one or normally functioning one (Refer to COMPONENTS [09/2015 - ] ).
2. Check that the entry function operates normally (Refer to OPERATION CHECK [09/2015 - ] ).

   OK

   Operates normally

Result:  OK

OK

END (DOOR ELECTRICAL KEY OSCILLATOR IS DEFECTIVE)

Result:  NG

NG

See step  8

1. Replace the rear door outside handle RH with a new one or normally functioning one (Refer to REMOVAL [09/2015 - ] ).
2. Check that the entry function operates normally (Refer to OPERATION CHECK [09/2015 - ] ).

   OK

   Operates normally

Result:  OK

OK

END (REAR DOOR OUTSIDE HANDLE RH IS DEFECTIVE)

Result:  NG

NG

See step  9

1. Replace the rear door ECU RH with a new one or normally functioning one (Refer to COMPONENTS [09/2015 - ] )
2. Check that the entry function operates normally (Refer to OPERATION CHECK [09/2015 - ] ).

   OK

   Operates normally

Result:  OK

OK

END (REAR DOOR ECU RH IS DEFECTIVE)

Result:  NG

NG

REPLACE CERTIFICATION ECU

(Refer to REMOVAL [09/2015 - ] )
