Driver Side Switch Module LIN Communication Malfunction [09/2015 - ]: Procedure

  1. CLEAR DTC
    1. Clear the DTC (Refer to DTC CHECK / CLEAR [09/2015 - ] ).

    Result:  NEXT

    NEXT

    See step  2

  2. CHECK FOR DTC
    1. Recheck for DTC (Refer to DTC CHECK / CLEAR [09/2015 - ] ).
      RESULT

      Result Proceed to
      DTC U1127, U1128 and U1129 output occurs A
      DTC U1127, U1128 or U1129 output occurs B
      No DTC output occurs C

    Result:  B

    B

    GO TO DTC CHART

    (Refer to DIAGNOSTIC TROUBLE CODE CHART [09/2015 - ] )

    Result:  C

    C

    USE SIMULATION METHOD TO CHECK

    (Refer to HOW TO PROCEED WITH TROUBLESHOOTING [09/2015 - ] )

    Result:  A

    A

    See step  3

  3. CHECK HARNESS AND CONNECTOR (OUTER MIRROR SWITCH - NO. 1 CONSOLE SWITCH)

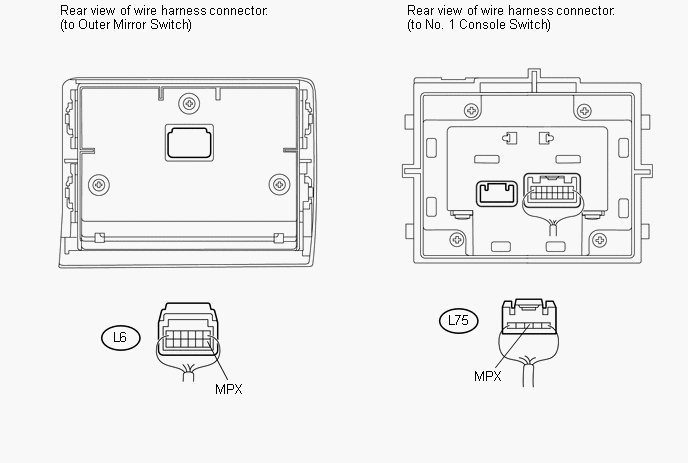

    1. Disconnect the L6 and L75 switch connectors.
      GTY677807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance and voltage according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      L6-7 (MPX) - L75-3 (MPX) Always Below 1 Ω
      L6-7 (MPX) or L75-3 (MPX) - Body ground Always 10 kΩ or higher

      Standard voltage

      Tester Connection Condition Specified Condition
      L6-7 (MPX) or L75-3 (MPX) - Body ground Always Below 1 V

    Result:  OK

    OK

    REPLACE OUTER MIRROR SWITCH

    (Refer to REMOVAL [09/2015 - ] )

    Result:  NG

    NG

    See step  4

  4. CLEAR DTC
    1. Reconnect the L6 switch connector.
    2. Clear the DTC (Refer to DTC CHECK / CLEAR [09/2015 - ] ).

    Result:  NEXT

    NEXT

    See step  5

  5. CHECK FOR DTC
    1. Disconnect the L75 switch connector.
    2. Recheck for DTC (Refer to DTC CHECK / CLEAR [09/2015 - ] ).
      RESULT

      Result Proceed to
      DTC U1127, U1128 and U1129 output occurs A
      DTC U1127 output occurs (w/o Rear Entertainment System) B
      DTC U1127 output occurs (w/ Rear Entertainment System) C

    Result:  B

    B

    REPLACE NO. 1 CONSOLE SWITCH

    (Refer to REMOVAL [09/2015 - ] )

    Result:  C

    C

    REPLACE NO. 1 CONSOLE SWITCH

    (Refer to REMOVAL [09/2015 - ] )

    Result:  A

    A

    See step  6

  6. CLEAR DTC
    1. Reconnect the L75 switch connector.
    2. Clear the DTC (Refer to DTC CHECK / CLEAR [09/2015 - ] ).

    Result:  NEXT

    NEXT

    See step  7

  7. CHECK FOR DTC
    1. Disconnect the e4 ECU connector.
    2. Recheck for DTC (Refer to DTC CHECK / CLEAR [09/2015 - ] ).
      RESULT

      Result Proceed to
      DTC U1127, U1128 and U1129 output occurs A
      DTC U1128 output occurs B

    Result:  B

    B

    REPLACE FRONT SEAT CLIMATE CONTROL ECU RH

    (Refer to DISASSEMBLY [09/2015 - ] )

    Result:  A

    A

    See step  8

  8. CLEAR DTC
    1. Reconnect the e4 ECU connector.
    2. Clear the DTC (Refer to DTC CHECK / CLEAR [09/2015 - ] ).

    Result:  NEXT

    NEXT

    See step  9

  9. CHECK FOR DTC
    1. Disconnect the e34 ECU connector.
    2. Recheck for DTC (Refer to DTC CHECK / CLEAR [09/2015 - ] ).
      RESULT

      Result Proceed to
      DTC U1127, U1128 and U1129 output occurs A
      DTC U1129 output occurs B

    Result:  A

    A

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:  B

    B

    REPLACE FRONT SEAT CLIMATE CONTROL ECU LH

    (Refer to DISASSEMBLY [09/2015 - ] )
