Multi-media Module Receiver Assembly Communication Stop Mode [09/2015 - ]: Wiring Diagram

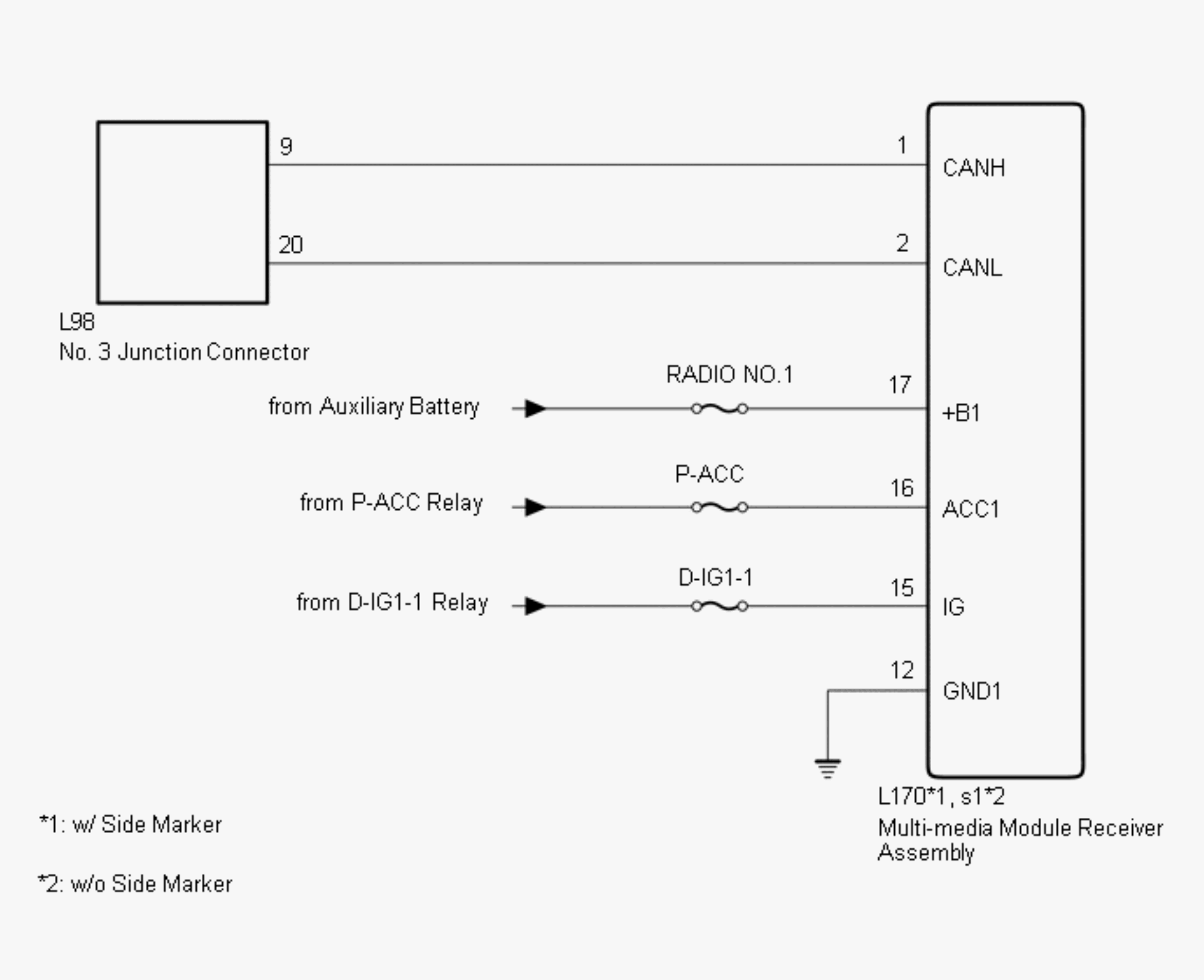

Fig 1: Multi - media Module Receiver Circuit Diagram

GTY680041

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
