DTC U0327: Software Incompatibility with Vehicle Security Control Module [09/2015 - ]: Wiring Diagram

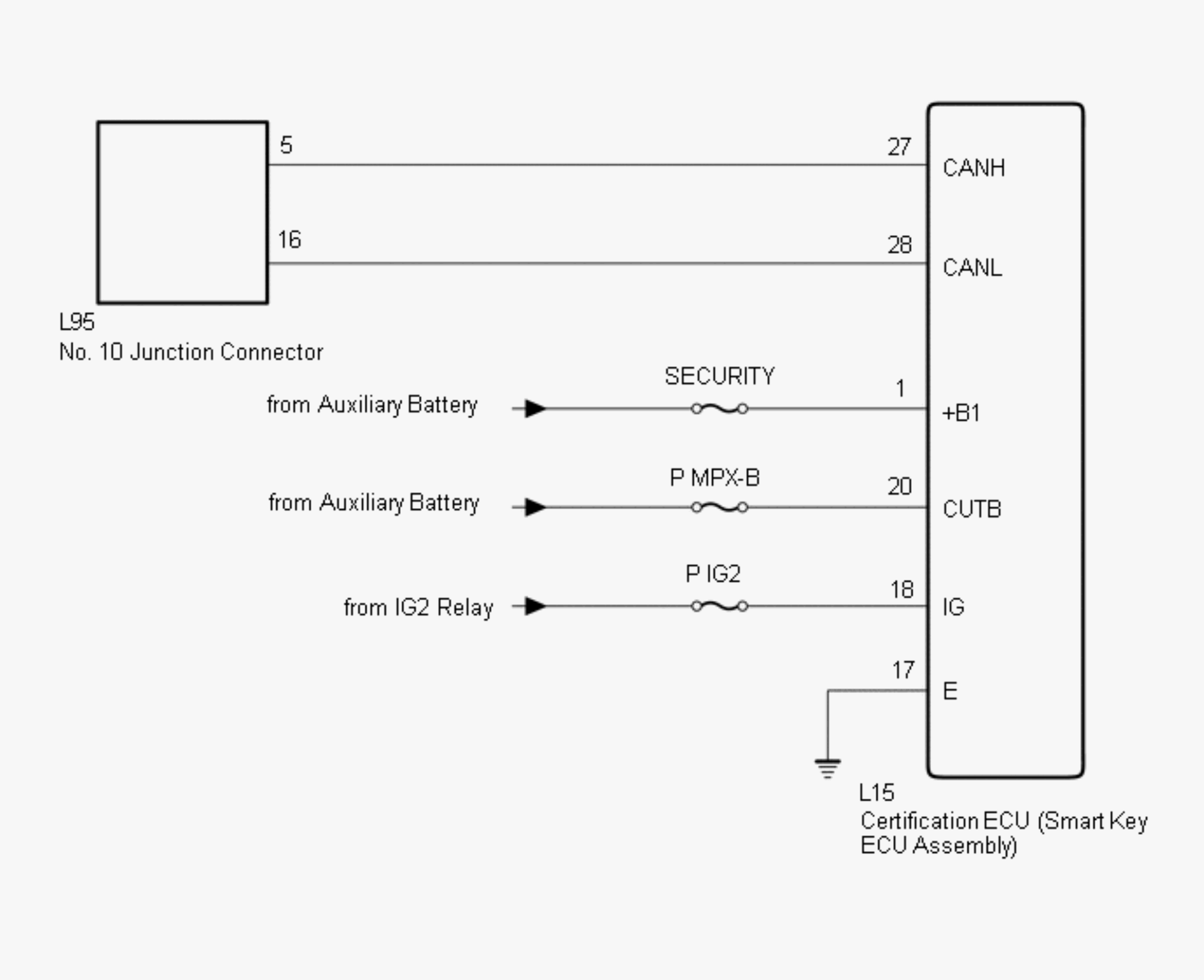

Fig 1: Certification ECU Circuit Diagram

GTY646710

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
