Reassembly [09/2016 - ]: Procedure

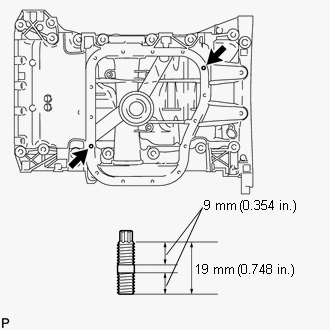

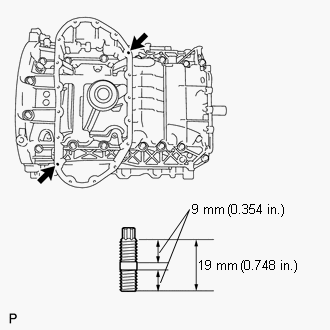

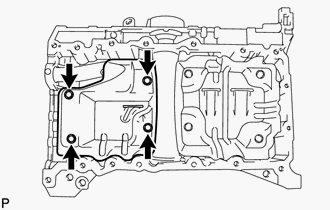

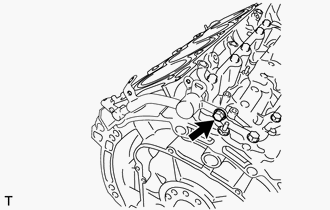

- INSTALL OIL PAN STUD BOLT NOTE:
If a stud bolt is deformed or the threads are damaged, replace it.
- INSTALL NO. 1 VENTILATION CONNECTOR

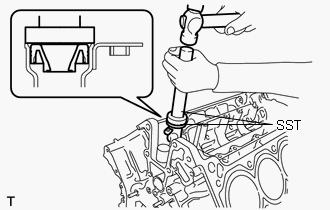

- Install the No. 1 ventilation connector as shown in the illustration.

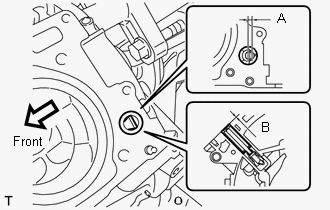

Acceptable angle (A)
-5 to 5°
Tap-in depth (B)
0.2 to 3.2 mm (0.008 to 0.126 in.)
NOTE:After the installation of the ventilation connector, do not rotate it.
HINT:
Connect the No. 1 ventilation connector so that its flat surface faces the rear part of the engine.

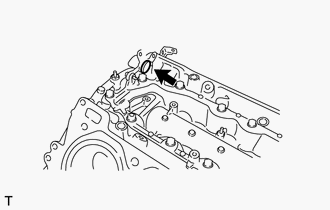

- Install the No. 1 ventilation connector as shown in the illustration.

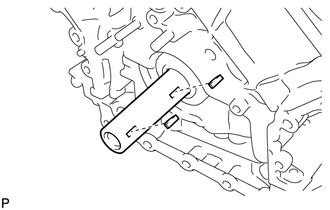

- INSTALL OIL DRAIN PIPE SUBASSEMBLY
- INSTALL ENGINE REAR OIL SEAL RETAINER

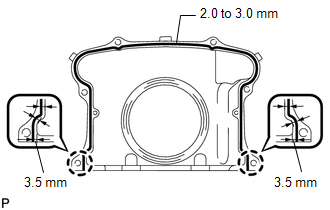

- Apply seal packing in a continuous line as shown in the illustration.
Seal packing
Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent
Standard seal diameter
2.0 to 3.0 mm (0.079 to 0.118 in.)
Application position from inside edge of retainer
3.5 mm (0.138 in.)
NOTE:- Remove any oil from the contact surface.
- Install the oil pan within 3 minutes and tighten the bolts and nuts within 15 minutes after applying seal packing.
- Do not start the engine for at least 2 hours after installing.

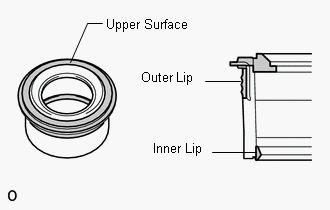

- When installing the oil seal retainer, make sure the lip of the oil seal is not damaged.
- When installing the oil seal retainer, make sure the lip of the oil seal is not folded incorrectly.

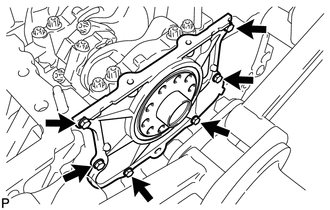

- Install the oil seal retainer with the 6 bolts.
Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
- Apply seal packing in a continuous line as shown in the illustration.

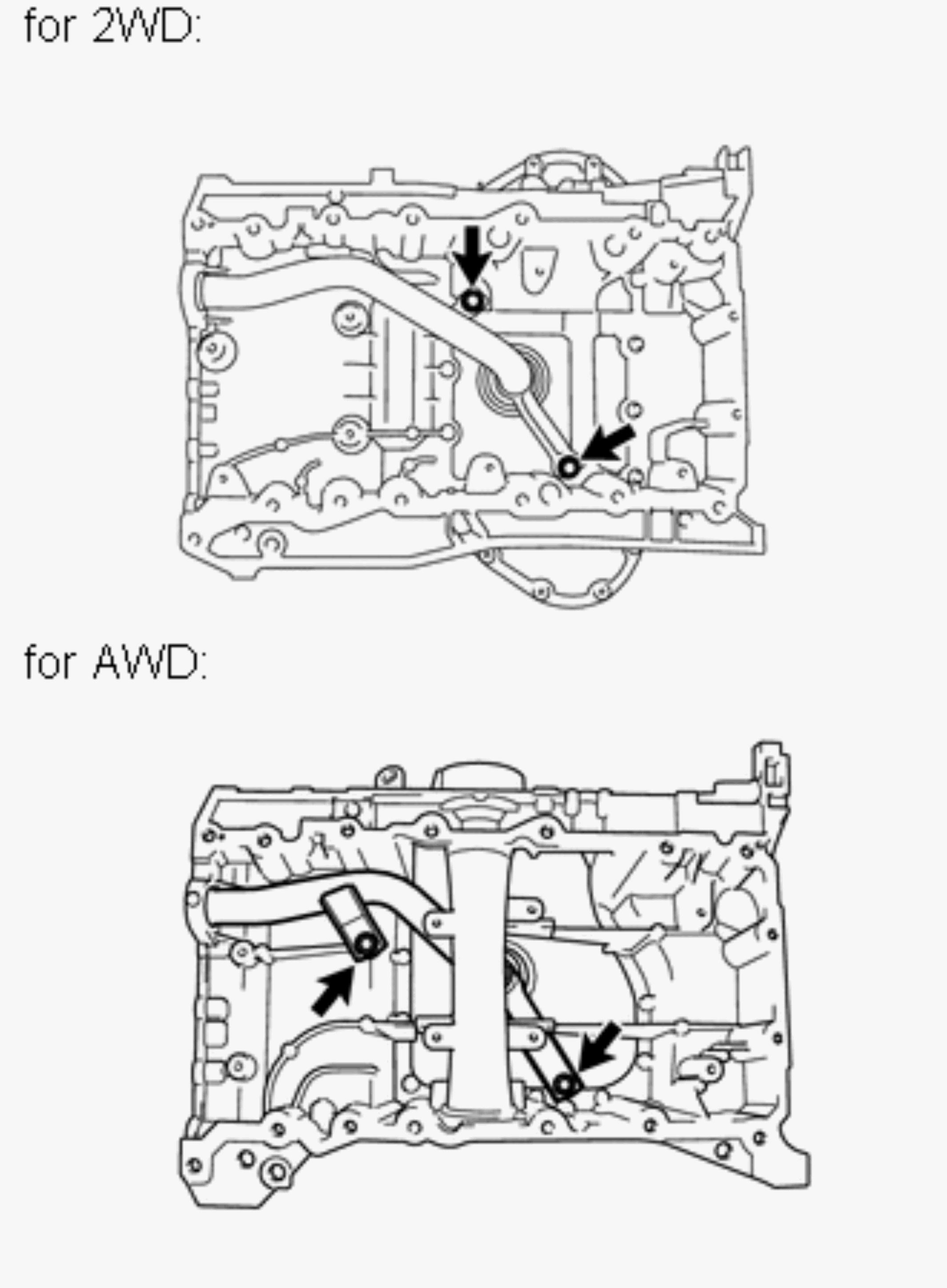

- INSTALL OIL STRAINER SUBASSEMBLY
- INSTALL NO. 2 OIL PAN BAFFLE PLATE (for AWD)

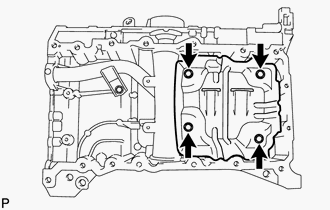

- INSTALL NO. 1 OIL PAN BAFFLE PLATE
- INSTALL OIL PAN SUBASSEMBLY
- Apply seal packing in a continuous line as shown in the illustration.
Seal packing
Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent
Standard seal diameter
3.0 to 4.0 mm (0.118 to 0.157 in.)
Application position from inside edge of oil pan
6.0 mm (0.236 in.)
NOTE:- Remove any oil from the contact surface.
- Install the oil pan within 3 minutes and tighten the bolts and nuts within 15 minutes after applying seal packing.

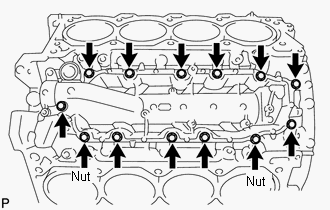

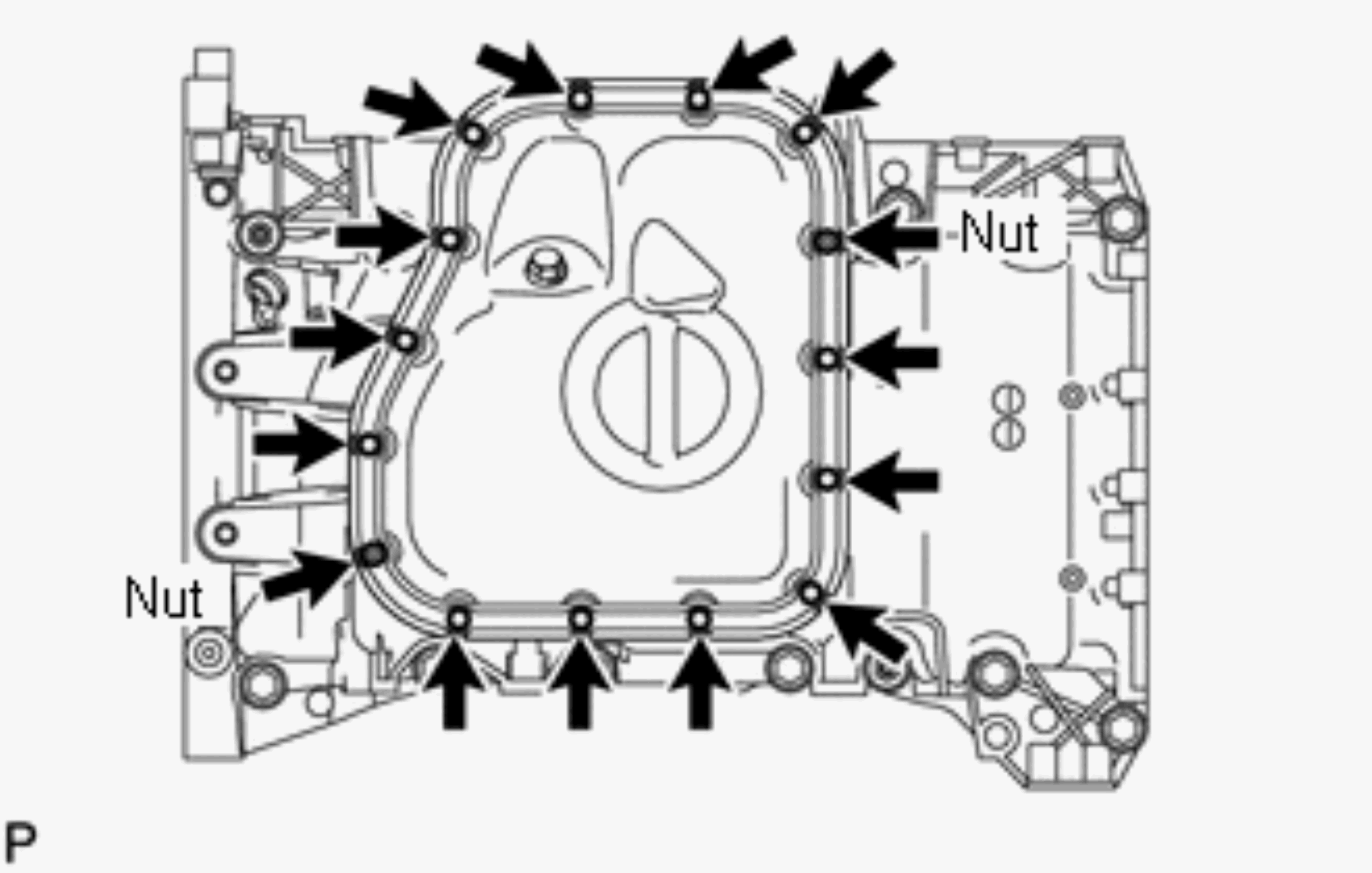

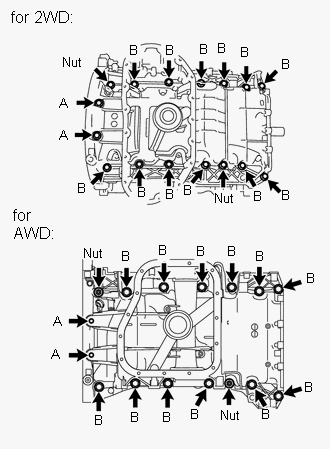

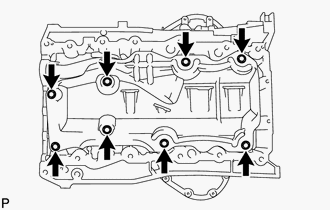

- Install the oil pan with the 14 bolts and 2 nuts.
for bolt A
Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
for bolt B and nut
Torque: 35 N*m (357 kgf*cm, 26 ft.*lbf)
NOTE:Do not start the engine for at least 2 hours after installing.
- Apply seal packing in a continuous line as shown in the illustration.
- INSTALL OIL PAN PROTECTOR (for 2WD)
- INSTALL NO. 2 OIL PAN SUBASSEMBLY
- for 2WD:

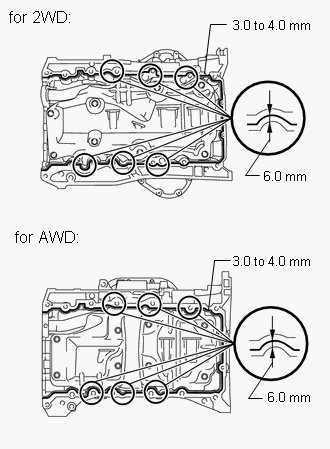

- Apply seal packing in a continuous line as shown in the illustration.
Seal packing
Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent
Standard seal diameter
3.0 to 4.0 mm (0.118 to 0.157 in.)
NOTE:- Remove any oil from the contact surface.

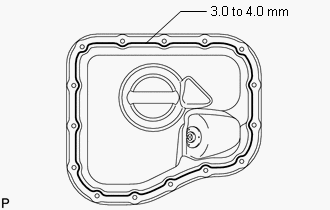

- Install the oil pan within 3 minutes and tighten the bolts and nuts within 10 minutes after applying seal packing.
- Do not start the engine for at least 2 hours after installing.
- Install the oil pan with the 15 bolts and 2 nuts.
Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
- Apply seal packing in a continuous line as shown in the illustration.
- for AWD:

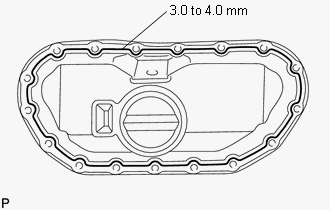

- Apply seal packing in a continuous line as shown in the illustration.
Seal packing
Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent
Standard seal diameter
3.0 to 4.0 mm (0.118 to 0.157 in.)
NOTE:- Remove any oil from the contact surface.
- Install the oil pan within 3 minutes and tighten the bolts and nuts within 10 minutes after applying seal packing.
- Install the oil pan with the 13 bolts and 2 nuts.
Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
NOTE:Do not start the engine for at least 2 hours after installing.
- Apply seal packing in a continuous line as shown in the illustration.
- for 2WD:

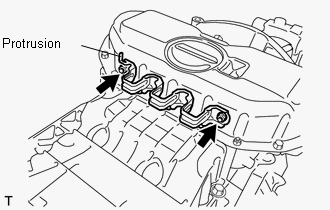

- INSTALL VENTILATION PIPE GASKET
- INSTALL NO. 1 HEAT EXCHANGER COVER

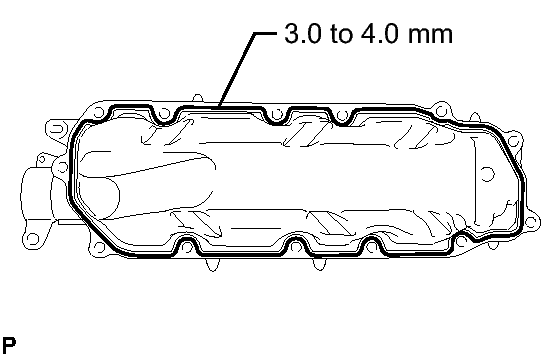

- Apply seal packing in a continuous line as shown in the illustration.
Seal packing
Toyota Genuine Seal Packing 1282B, Three Bond 1282B or equivalent
Standard seal diameter
3.0 to 4.0 mm (0.118 to 0.157 in.)
NOTE:- Remove any oil from the contact surface.
- Install the heat exchanger cover within 3 minutes and tighten the bolts and nuts within 10 minutes after applying seal packing.

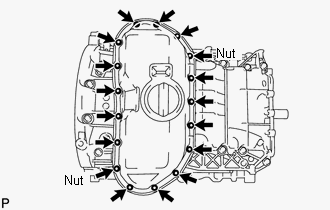

- Install the heat exchanger cover with the 11 bolts and 2 nuts.
Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)
NOTE:Do not start the engine for at least 2 hours after installing.
- Install the bolt.
Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
- Apply seal packing in a continuous line as shown in the illustration.
- INSTALL OIL RETURN PIPE GASKET

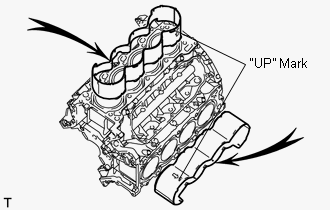

- INSTALL CYLINDER BLOCK WATER JACKET SPACER
- INSTALL CYLINDER HEAD SUBASSEMBLY (for Bank 1)
See step 3
- INSTALL CYLINDER HEAD SUBASSEMBLY (for Bank 2)
See step 3
- INSTALL VALVE STEM CAP
- Apply a light coat of engine oil to the valve stem caps.
- Install the 32 valve stem caps to the cylinder head.
- INSTALL VALVE LASH ADJUSTER ASSEMBLY
- Be sure to inspect the valve lash adjuster before installing it (See step 2).
- Install the 32 valve lash adjusters to the cylinder head.NOTE:
Install the lash adjuster at the same place it was removed from.

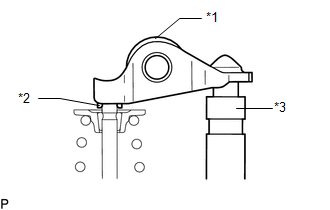

- INSTALL NO. 1 VALVE ROCKER ARM SUBASSEMBLY
- INSTALL CAMSHAFT BEARING CAP (for Bank 1)
See step 1
- INSTALL CAMSHAFT HOUSING SUBASSEMBLY (for Bank 1)
See step 2
- INSTALL CAMSHAFT BEARING CAP (for Bank 2)
See step 1
- INSTALL CAMSHAFT HOUSING SUBASSEMBLY (for Bank 2)
See step 2
- INSTALL CRANKSHAFT TIMING GEAR KEY
- SET NO. 1 CYLINDER TO TDC / COMPRESSION
See step 1
- INSTALL NO. 2 CHAIN TENSIONER ASSEMBLY
See step 2
- INSTALL CHAIN SUBASSEMBLY (for Bank 2)
See step 4
- INSTALL NO. 1 CHAIN VIBRATION DAMPER (for Bank 2)
See step 5
- INSTALL CHAIN TENSIONER SLIPPER (for Bank 2)
See step 6
- INSTALL NO. 1 CHAIN TENSIONER ASSEMBLY (for Bank 2)
See step 7
- INSTALL NO. 3 CHAIN TENSIONER ASSEMBLY
See step 8
- INSTALL CHAIN SUBASSEMBLY (for Bank 1)
See step 10
- INSTALL CHAIN TENSIONER SLIPPER (for Bank 1)
See step 11
- INSTALL NO. 1 CHAIN TENSIONER ASSEMBLY (for Bank 1)
See step 12
- INSTALL NO. 1 CHAIN VIBRATION DAMPER (for Bank 1)
See step 13
- TIGHTEN CAMSHAFT TIMING GEAR ASSEMBLY
See step 14
- CHECK NO. 1 CYLINDER TO TDC / COMPRESSION
See step 15

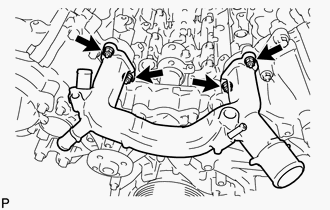

- INSTALL WATER INLET PIPE
Refer to PROCEDURE - Step 1
- INSTALL ENGINE WATER PUMP ASSEMBLY
Refer to PROCEDURE - Step 1
- INSTALL TIMING CHAIN COVER SUBASSEMBLY
Refer to PROCEDURE - Step 2
- INSTALL OIL CONTROL VALVE FILTER
- for Bank 1:
- for Bank 2:
- INSTALL CYLINDER HEAD COVER SUBASSEMBLY LH

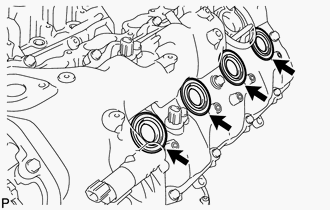

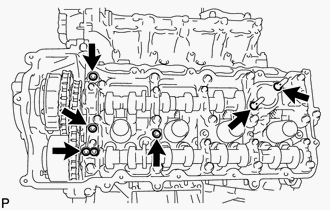

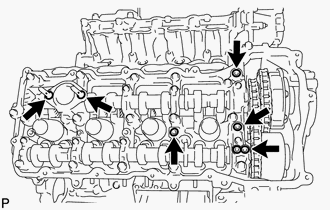

- Install 4 new gaskets and 2 new O-rings to the camshaft bearing caps (No. 2, No. 3, No. 7).
- Install a new gasket to the cylinder head cover.NOTE:
Remove any oil from the contact surface.

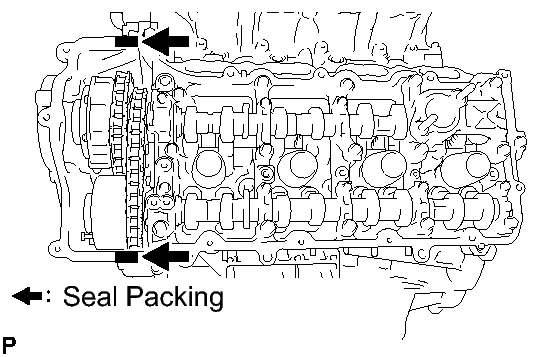

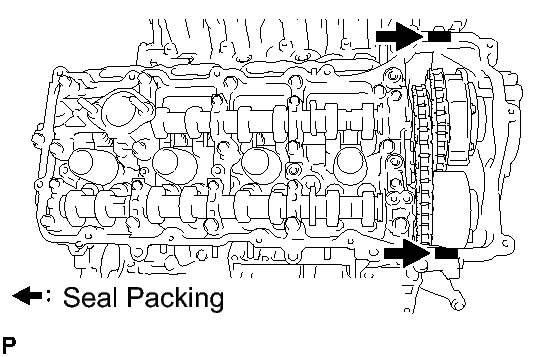

- Apply seal packing as shown in the illustration.
Seal packing
Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent
NOTE:- Remove any oil from the contact surface.
- Install the cylinder head cover within 3 minutes and tighten the bolts within 15 minutes after applying seal packing.
- Do not start the engine for at least 2 hours after the installation.

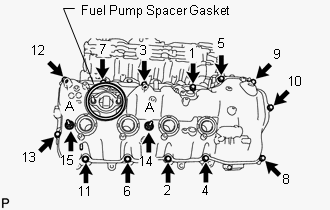

- Install the cylinder head cover with 2 new seal washers and the 15 bolts.
for bolt A
Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)
except bolt A
Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

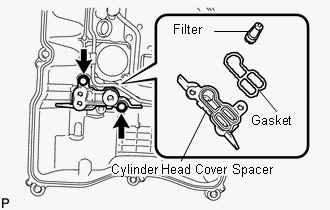

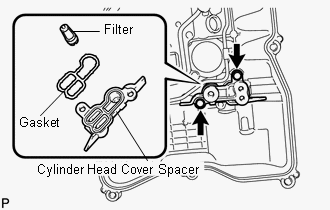

- Install a new fuel pump spacer gasket.
- Install 4 new gaskets and 2 new O-rings to the camshaft bearing caps (No. 2, No. 3, No. 7).
- INSTALL CYLINDER HEAD COVER SUBASSEMBLY RH
- Install 4 new gaskets and 2 new O-rings to the camshaft bearing caps (No. 1, No. 3, No. 6).
- Install a new gasket to the cylinder head cover.NOTE:
Remove any oil from the contact surface.
- Apply seal packing as shown in the illustration.
Seal packing
Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent
NOTE:- Remove any oil from the contact surface.
- Install the cylinder head cover within 3 minutes and tighten the bolts within 15 minutes after applying seal packing.
- Do not start the engine for at least 2 hours after the installation.

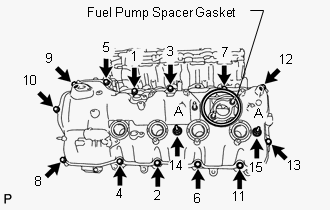

- Install the cylinder head cover with 2 new seal washers and the 15 bolts.
for bolt A
Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)
except bolt A
Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)
- Install a new fuel pump spacer gasket.
- Install 4 new gaskets and 2 new O-rings to the camshaft bearing caps (No. 1, No. 3, No. 6).
- INSTALL SPARK PLUG TUBE GASKET
- INSTALL TIMING CHAIN CASE OIL SEAL
See step 6
- INSTALL CRANKSHAFT PULLEY
Refer to PROCEDURE - Step 6
- INSTALL FRONT WATER BY-PASS JOINT
- INSTALL OIL FILTER BRACKET (for 2WD)
Refer to PROCEDURE - Step 8
- INSTALL OIL FILTER BRACKET (for AWD)
Refer to PROCEDURE - Step 9
- INSTALL OIL FILTER ELEMENT (for 2WD)
Refer to PROCEDURE - Step 4
- INSTALL OIL FILTER ELEMENT (for AWD)
Refer to PROCEDURE - Step 4

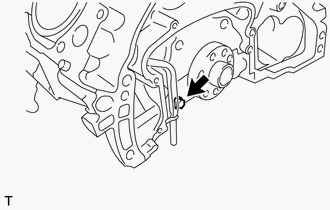

- INSTALL CYLINDER BLOCK WATER DRAIN COCK SUBASSEMBLY

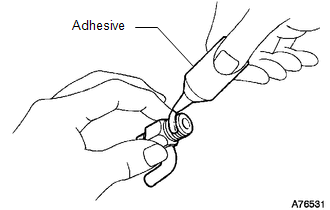

- Apply adhesive to 2 or 3 threads of the drain cock.
Adhesive
Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent

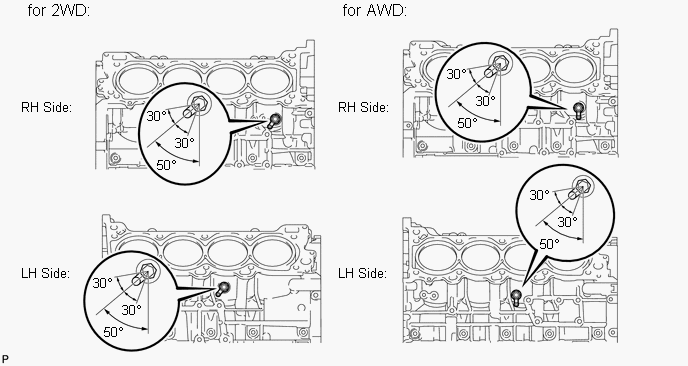

- Install the water drain cocks as shown in the illustration.
Torque: 30 N*m (306 kgf*cm, 22 ft.*lbf)
NOTE:- Do not rotate the drain cocks more than 1 revolution (360°) after tightening the drain cocks with the specified torque.
- Do not loosen the drain cocks to adjust them. If an adjustment is necessary, remove the drain cocks and reinstall them.
- Install the water drain cock plugs to the water drain cocks.
Torque: 13 N*m (133 kgf*cm, 10 ft.*lbf)
- Apply adhesive to 2 or 3 threads of the drain cock.

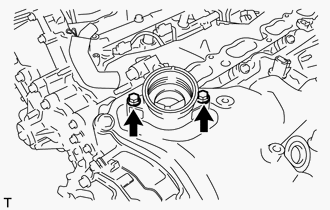

- INSTALL CAMSHAFT TIMING CONTROL WITH EDU MOTOR ASSEMBLY LH
Refer to PROCEDURE - Step 1
- INSTALL CAMSHAFT TIMING CONTROL WITH EDU MOTOR ASSEMBLY RH
Refer to PROCEDURE - Step 2
- INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Bank 2)
Refer to PROCEDURE - Step 2
- INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Bank 1)
Refer to PROCEDURE - Step 1
- INSTALL CRANKSHAFT POSITION SENSOR
Refer to PROCEDURE - Step 1
- INSTALL CAMSHAFT POSITION SENSOR
Refer to PROCEDURE - Step 1
- INSTALL VVT SENSOR
Refer to PROCEDURE - Step 1
- INSTALL SPARK PLUG
Refer to PROCEDURE - Step 1

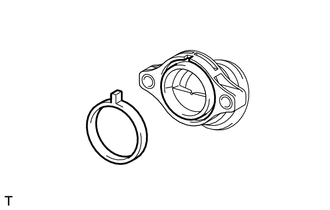

- INSTALL OIL FILLER CAP HOUSING
- INSTALL OIL FILLER CAP SUBASSEMBLY
