Installation [09/2015 - ]: Procedure

INSTALL CLOCK ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

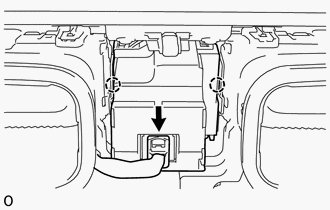

1. Attach the 2 claws to install the clock assembly to the instrument cluster finish panel garnish assembly.
2. Connect the connector.
INSTALL INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY
Refer to PROCEDURE - Step 19
INSTALL INSTRUMENT SIDE PANEL RH
Refer to PROCEDURE - Step 21
INSTALL MULTI-MEDIA MODULE RECEIVER ASSEMBLY
Refer to PROCEDURE - Step 3
INSTALL LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL
Refer to PROCEDURE - Step 5
INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL
Refer to PROCEDURE - Step 4
INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 6
INSTALL UPPER INSTRUMENT CLUSTER FINISH PANEL
Refer to PROCEDURE - Step 7
INSTALL UPPER REAR CONSOLE PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 8
INSTALL NO. 3 BOX PANEL
Refer to PROCEDURE - Step 9
INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
Refer to PROCEDURE - Step 10
INSTALL INSTRUMENT PANEL FINISH PANEL END LH
Refer to PROCEDURE - Step 11
INSTALL INSTRUMENT PANEL FINISH PANEL END RH
Refer to PROCEDURE - Step 12
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - ] ).
INSTALL COWL TOP VENTILATOR LOUVER RH
Refer to PROCEDURE - Step 15
