EVAP System [09/2015 - ]: Wiring Diagram

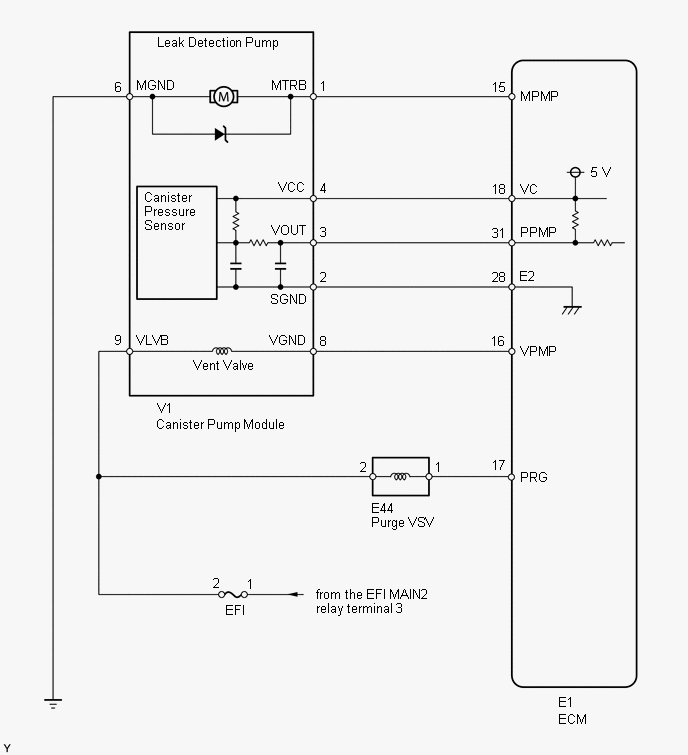

Fig 1: Canister Pump Module Circuit Diagram

GTY621295

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
