Components [09/2015 - ]: Illustration

Fig 1: Throttle Body Component Location With Torque Specifications (1 Of 2)
GTY626496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

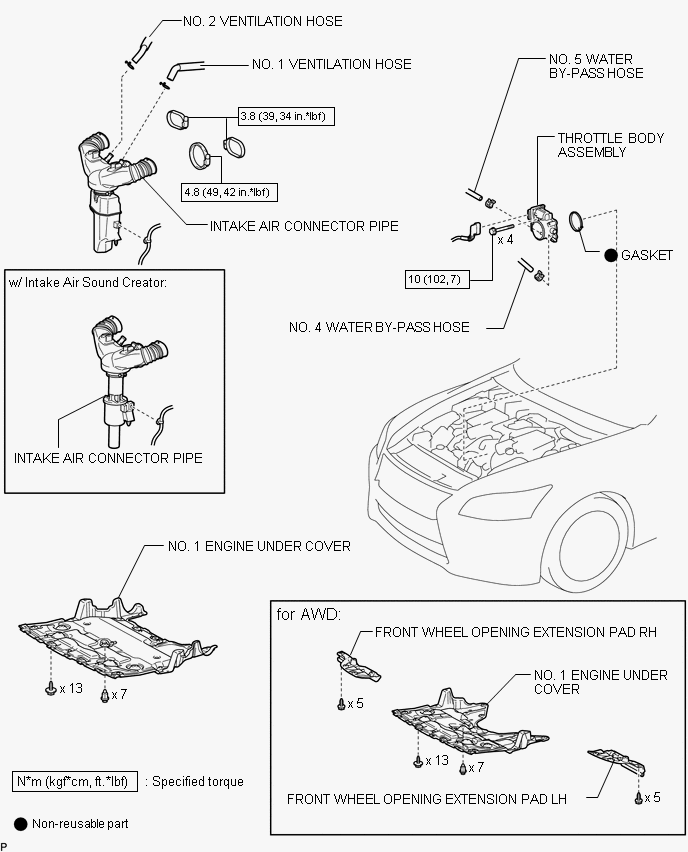

Fig 1: Throttle Body Component Location With Torque Specifications (2 Of 2)
GTY633235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
