Installation [09/2015 - ]: Procedure

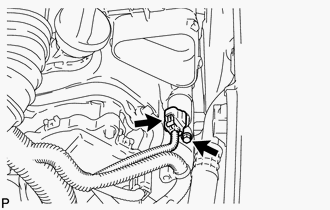

1. Apply a light coat of engine oil to a new O-ring, and install it to the camshaft timing oil control valve assembly.
2. Install the camshaft timing oil control valve assembly with the bolt.

   Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • Do not allow foreign matter to contact the oil seal face of the camshaft timing oil control valve assembly (connecting surface with cylinder head cover).
   • Be careful that the O-ring is not cracked or moved out of place when installing the camshaft timing oil control valve assembly.
3. Connect the camshaft timing oil control valve assembly connector.

1. Apply a light coat of engine oil to a new O-ring, and install it to the camshaft timing oil control valve assembly.

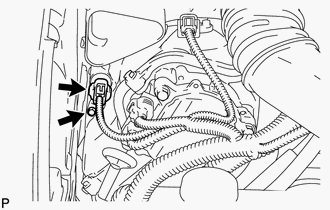

2. Install the camshaft timing oil control valve assembly with the bolt.

   Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • Do not allow foreign matter to contact the oil seal face of the camshaft timing oil control valve assembly (connecting surface with cylinder head cover).
   • Be careful that the O-ring is not cracked or moved out of place when installing the camshaft timing oil control valve assembly.
3. Connect the camshaft timing oil control valve assembly connector.

See step  3

See step  7

See step  8

1. After the engine is warmed up, perform the driving test. Then check that the oil control valve operates normally.
