Operation Check [09/2015 - 09/2016]

BLIND SPOT MONITOR BEAM AXIS INSPECTION
1. Procedure to enter Test Mode
  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG).
  3. Turn the blind spot monitor main switch (outer mirror switch assembly) on.
  4. Turn the Techstream on.
  5. Switch the blind spot monitor sensor to Test Mode using the Techstream. Enter the following menus: Body Electrical / Blind Spot Monitor Master or Blind Spot Monitor Slave / Utility / BSM Master beam axis inspection or BSM Slave beam axis inspection.
  6. Finish Test Mode.

BLIND SPOT MONITOR BEAM AXIS CONFIRMATION

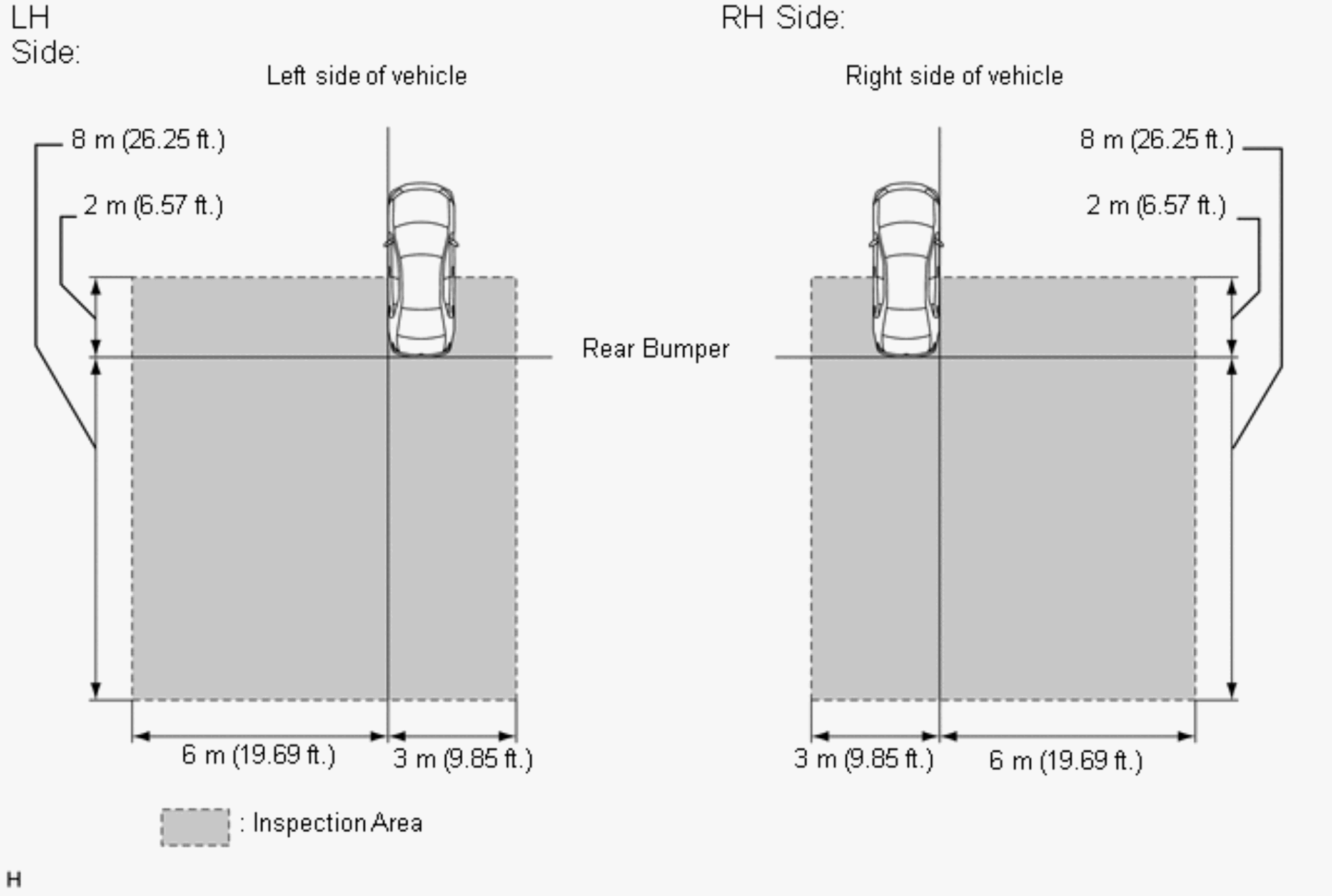

When performing the blind spot monitor beam axis confirmation, move the vehicle to a place where the space shown in the illustration can be secured.

Fig 1: Blind Spot Monitor Beam Axis Inspection Areas
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE:
- Perform this inspection on level ground.
- Make sure that there are no metal objects around the vehicle or on the ground.
- Unload the vehicle before beginning the inspection.
- Confirm that the tire pressure is correct before beginning the inspection.
- Do not place an object other than the reflector (such as a large metallic object) in or allow people to enter the inspection area (W 9 m (29.53 ft) x L 10 m (32.81 ft) x H 4 m (13.13 ft) shown in the illustration.
- Check that DTC C1ABB and DTC C1ABC are not output.
Place the reflector.
1. Hang a string (with weight) from the center of the vehicle's rear emblem. Mark the vehicle's rear center point on the ground. Repeat for the front of the vehicle. (mark (A) and (B)
2. Draw a vehicle center line so that it passes through mark (A) and (B) (front and rear center points).

  Fig 2: Vehicle Centerline W/ String, Marking (A) And (B) (Front And Rear Center Points)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

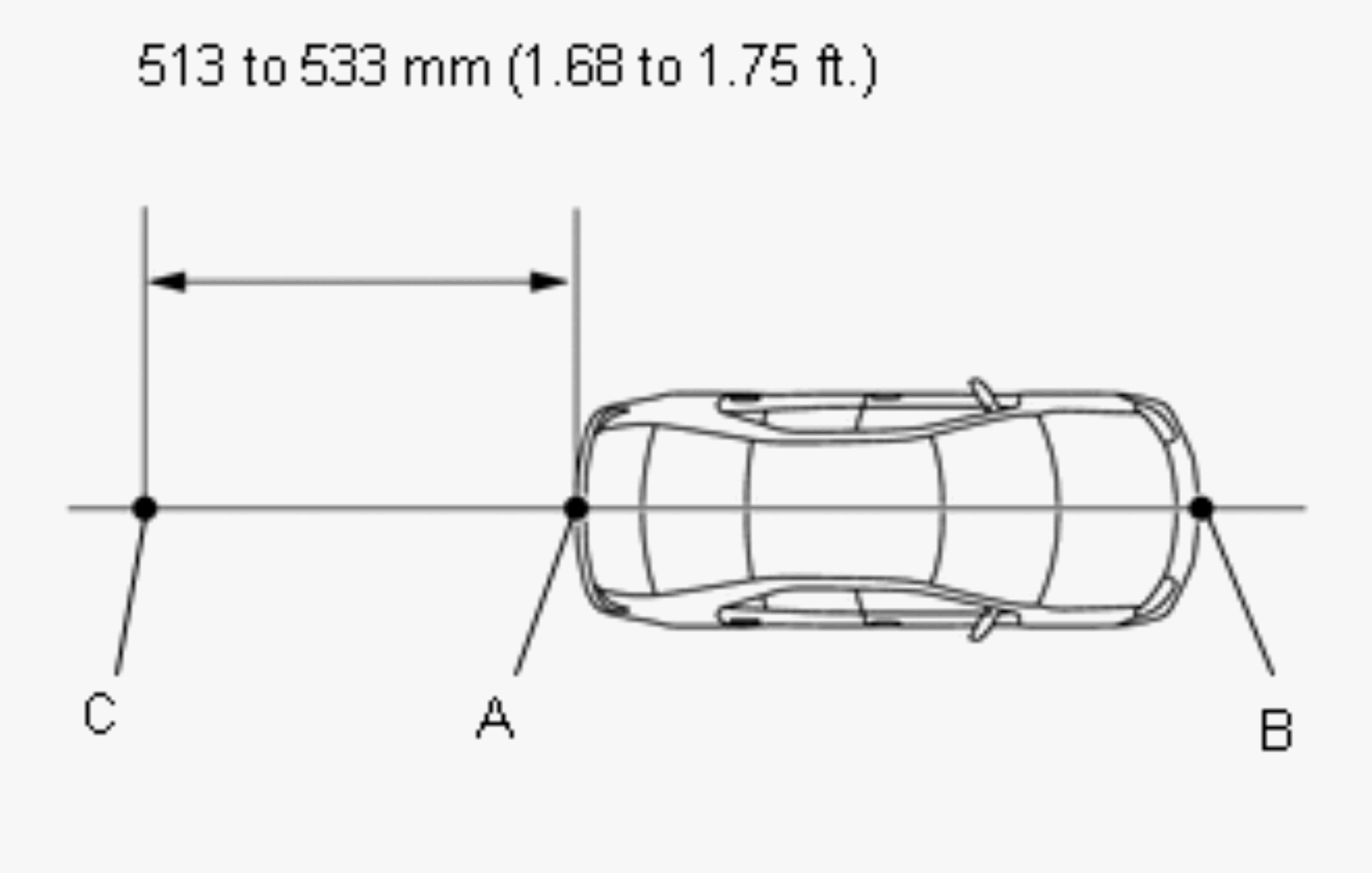

3. Mark the position on the center line 513 to 533 mm (1.68 to 1.75 ft.) behind the rear bumper. (Mark (C)

  Fig 3: Marking Position On The Center Line
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Prepare 2 pieces of string of 600 mm (1.97 ft.) in length and secure the end of each string at a point 300 mm (11.8 in.) from mark (C) as shown in the illustration.

  Fig 4: Securing Strings On Mark
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Pull the end of each string and mark the position where each string meets on both the left and right side (marks (D) and (E).

  Fig 5: Pulling End Of Strings To Marks (D) And (E)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

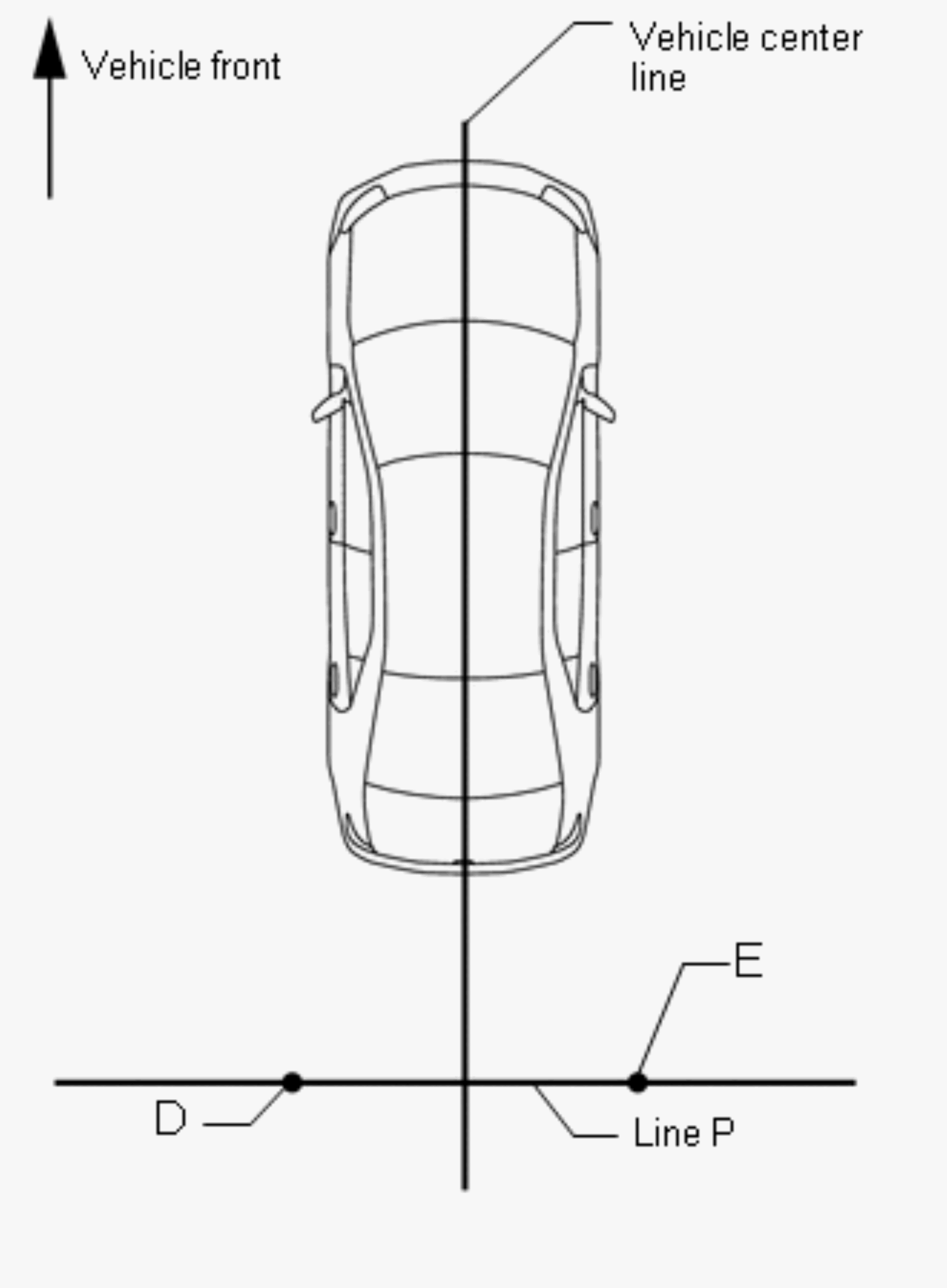

6. Draw a line (P) so that it passes through mark (D) and (E) and is perpendicular to the vehicle center line.

  Fig 6: Line Passing Through Marks (D) And (E)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

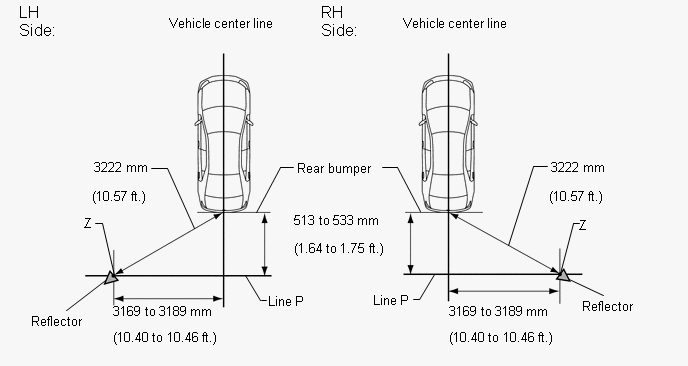

7. Set the reflector at the position (Z) shown in the illustration below.
  - SST: 09870-60000
    - 09870-60010
  - SST: 09870-60040
  Fig 7: Setting Reflector At Position (Z)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Set the reflector so that its center is 470 mm (1.54 ft) above the ground.

    Fig 8: Setting Reflector Center At 470 mm (1.54 ft)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - The center of triangular pyramid is the reference point for the setting position and angle.

    Fig 9: Reference Point
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - Set the reflector as shown in the illustration so that its center of triangular pyramid faces the blind spot monitor sensor.
  - Perform the operation as precisely as possible.

Perform the blind spot monitor beam axis display.

Connect the Techstream to the DLC3.
Turn the engine switch on (IG).
Turn the blind spot monitor main switch (outer mirror switch assembly) on.
Turn the Techstream on.
Enter the following menus: Body Electrical / Blind spot monitor Master or Blind spot monitor Slave / Utility / BSM Master beam axis display or BSM Slave beam axis display.

Check the results displayed for the BSM beam axis display.

Allowable Range

Item	Blind Spot Monitor Sensor LH (Master)	Blind Spot Monitor Sensor RH (Slave)
Angle	-3.6 to +3.6°	-3.6 to +3.6°
Distance	2.0 to 3.0 m (6.57 to 9.85 ft.)	2.0 to 3.0 m (6.57 to 9.85 ft.)

HINT:

If the results are outside the allowable range, try again as the reflector setting position may be incorrect or a metal object may exist near the detection area.

Perform the blind spot monitor beam axis adjustment using the Techstream. Enter the following menus: Body Electrical / Blind spot monitor Master or Blind spot monitor Slave / Utility / BSM Master beam axis adjustment or BSM Slave beam axis adjustment.
HINT:

When values on the axis display are in the allowable range, performing this adjustment compensates the values to the normal value.

BLIND SPOT MONITOR INSTALLATION CONDITION INSPECTION

NOTE:

Perform this inspection on level ground.
Unload the vehicle before beginning the inspection.
Confirm that the tire pressure is correct before beginning the inspection.

Remove the rear bumper (Refer to REMOVAL [09/2015 - 09/2016] ).

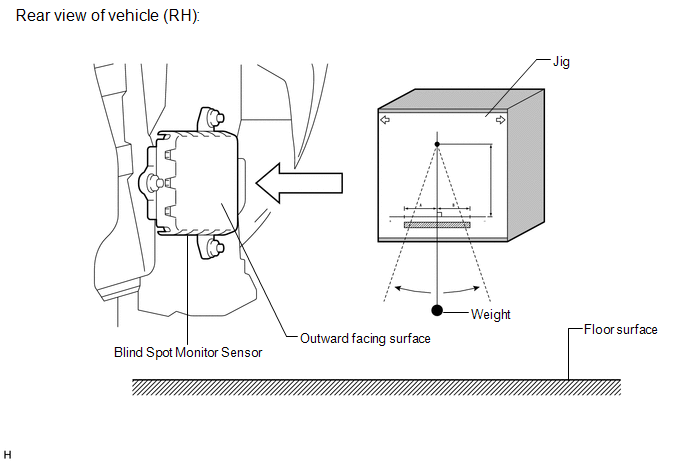

Attach a jig similar to the one shown in the illustration to the outward facing surface of the blind spot monitor sensor and check that the blind spot monitor sensor is perpendicular to the floor surface or within the allowable range.

Fig 10: Positioning Of JIG To Blind Spot Monitor Sensor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Positioning Of JIG To Blind Spot Monitor Sensor (2 of 2)

STANDARD

	A	B
Blind spot monitor sensor RH	8 mm (0.315 in.)	-8 mm (-0.315 in.)
Blind spot monitor sensor LH	8 mm (0.315 in.)	-8 mm (-0.315 in.)

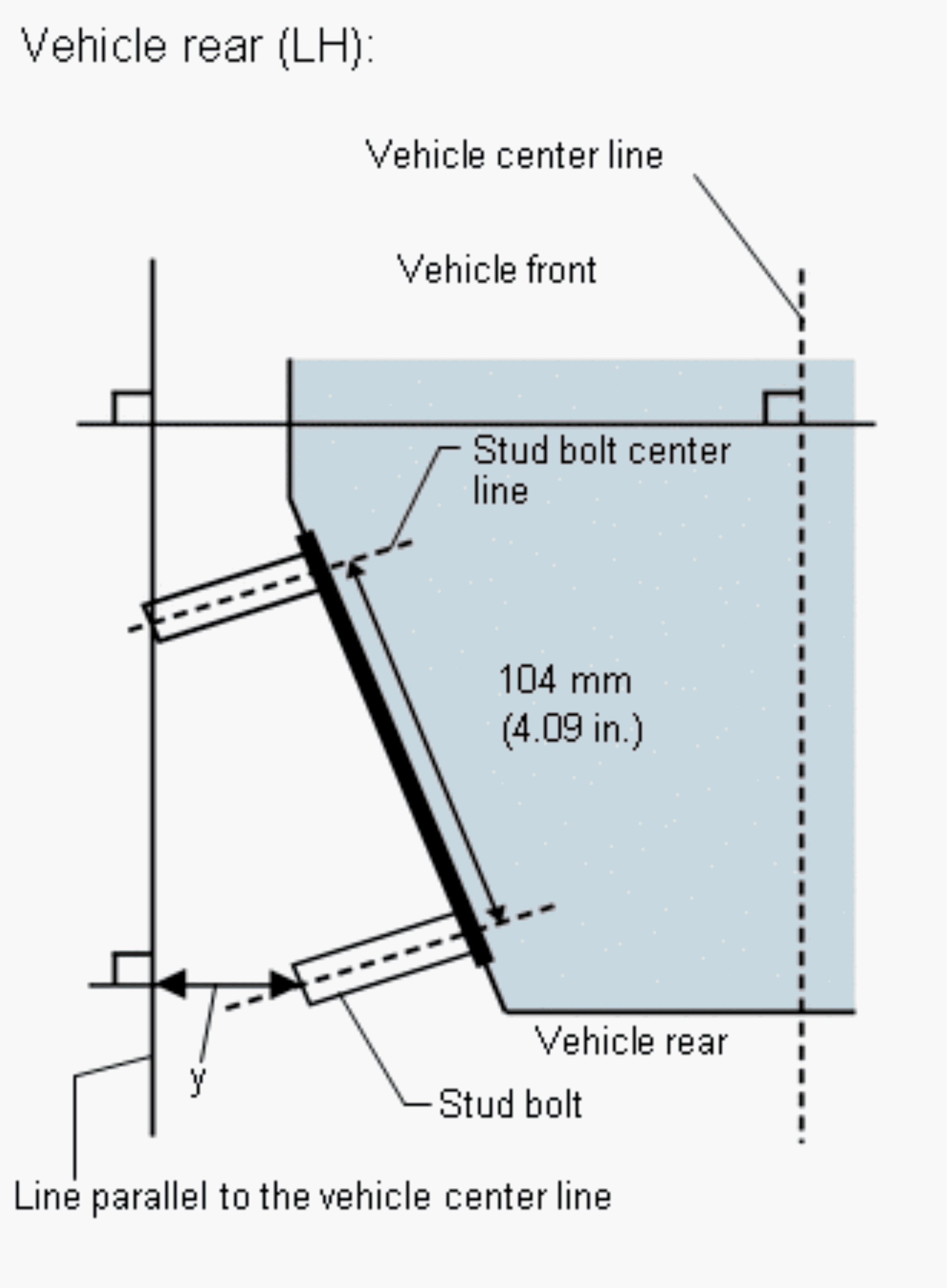

Using the sensor installation stud bolt center lines as a reference, check that the stud bolts are as shown in the illustration.

Standard

Dimension	Specified Value
y	29 to 42 mm (1.15 to 1.65 in.)

Fig 12: Stud Bolts And Stud Bolt Center Lines
