Power Source Circuit [09/2015 - ]: Procedure

1. Disconnect the blind spot monitor sensor LH connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   n1-5 (BLB) - Body ground	Engine switch on (IG)	11 to 14 V
   n1-5 (BLB) - Body ground	Engine switch off	Below 1 V

Result:  NG

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:  OK

OK

See step  2

1. Disconnect the blind spot monitor sensor LH connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   n1-10 (BLGD) - Body ground	Always	Below 1 Ω

Result:  NG

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:  OK

OK

See step  3

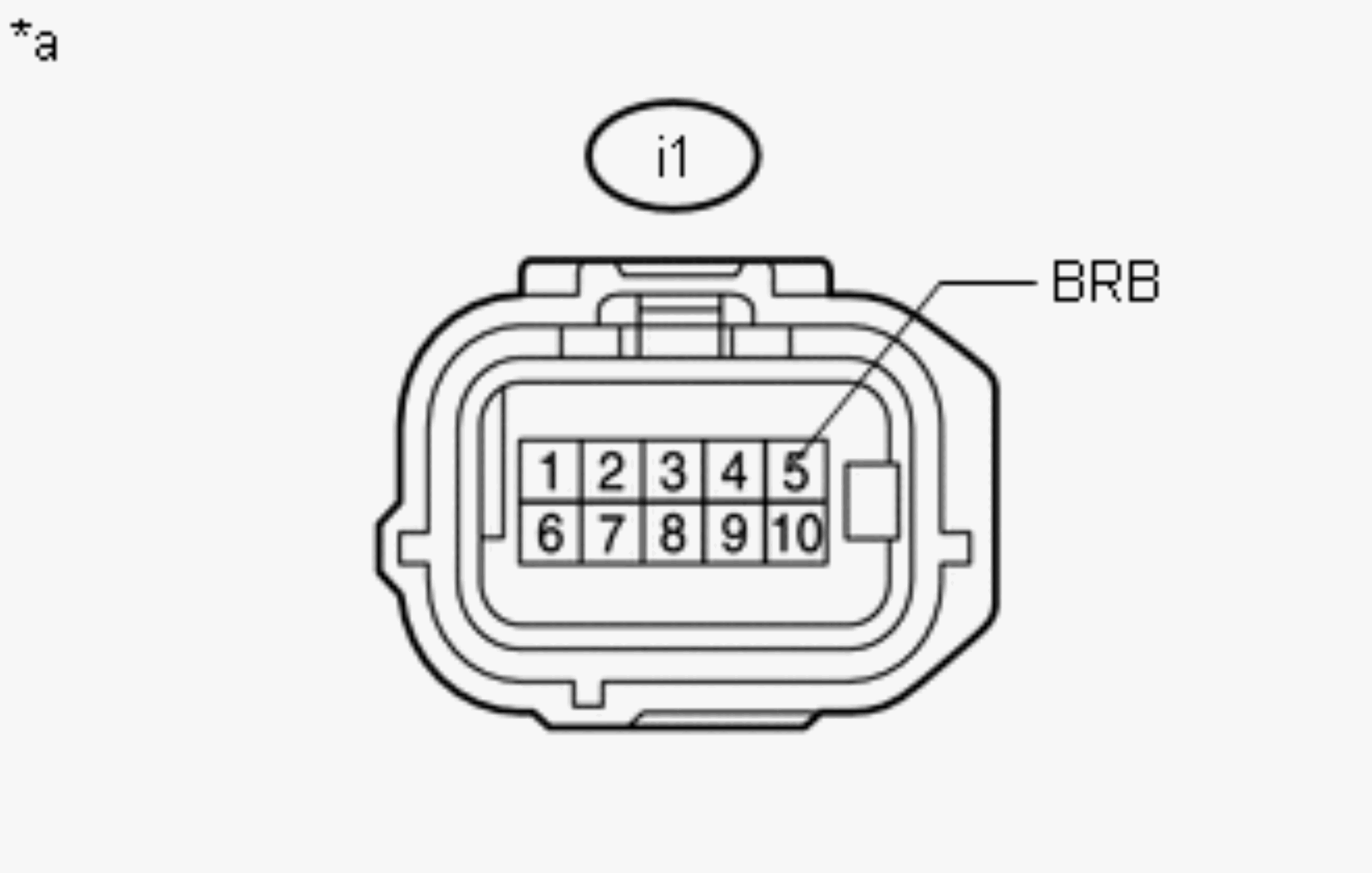

1. Disconnect the blind spot monitor sensor RH connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   i1-5 (BRB) - Body ground	Engine switch on (IG)	11 to 14 V
   i1-5 (BRB) - Body ground	Engine switch off	Below 1 V

Result:  NG

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:  OK

OK

See step  4

1. Disconnect the blind spot monitor sensor RH connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   i1-10 (BRGD) - Body ground	Always	Below 1 Ω

Result:  OK

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

(Refer to PROBLEM SYMPTOMS TABLE [09/2015 - ] )

Result:  NG

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
