DTC U1002: Lost Communication with Gateway Module [09/2015 - ]: Wiring Diagram

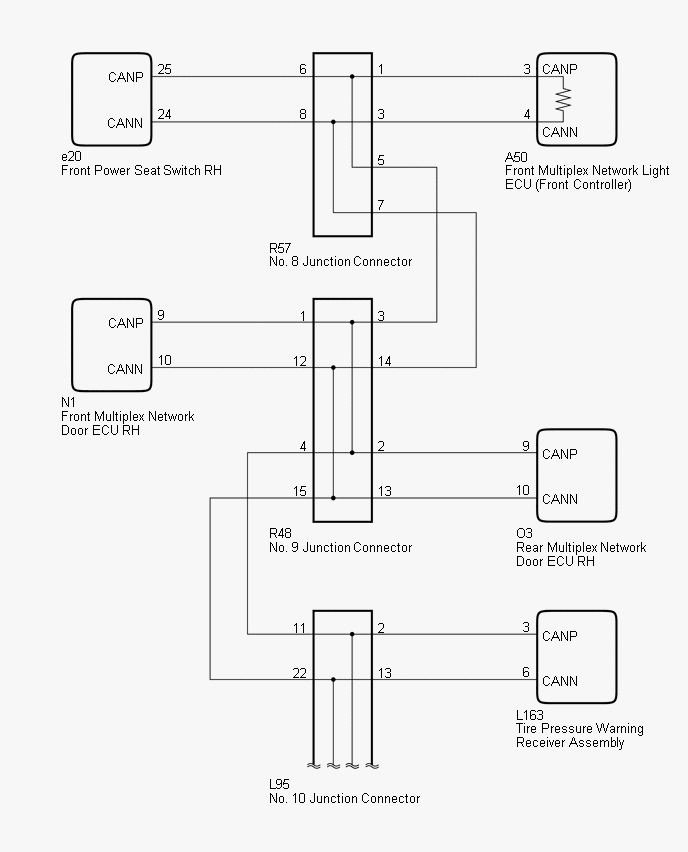

Fig 1: Main Body ECU Circuit Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

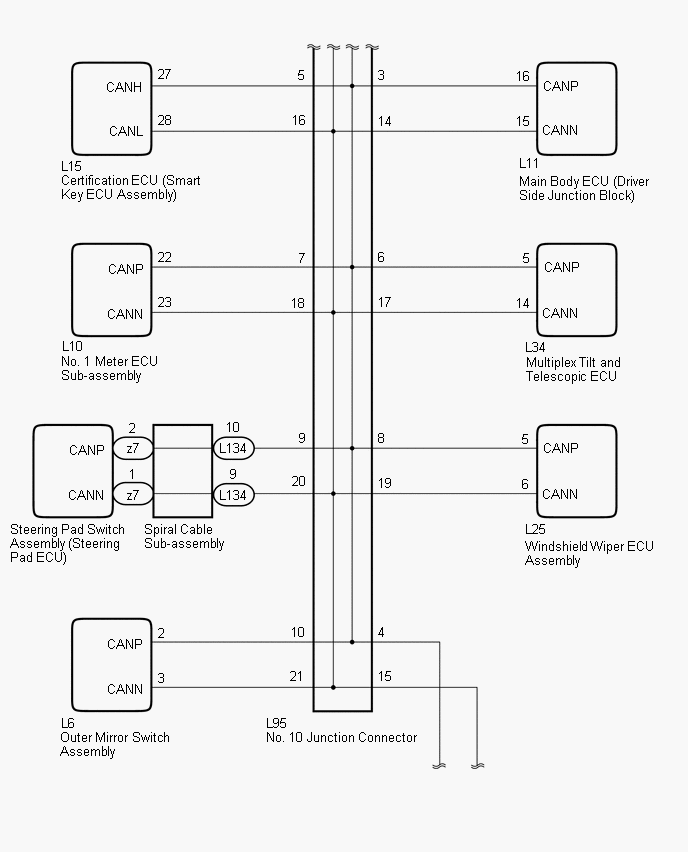

Fig 2: Main Body ECU Circuit Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

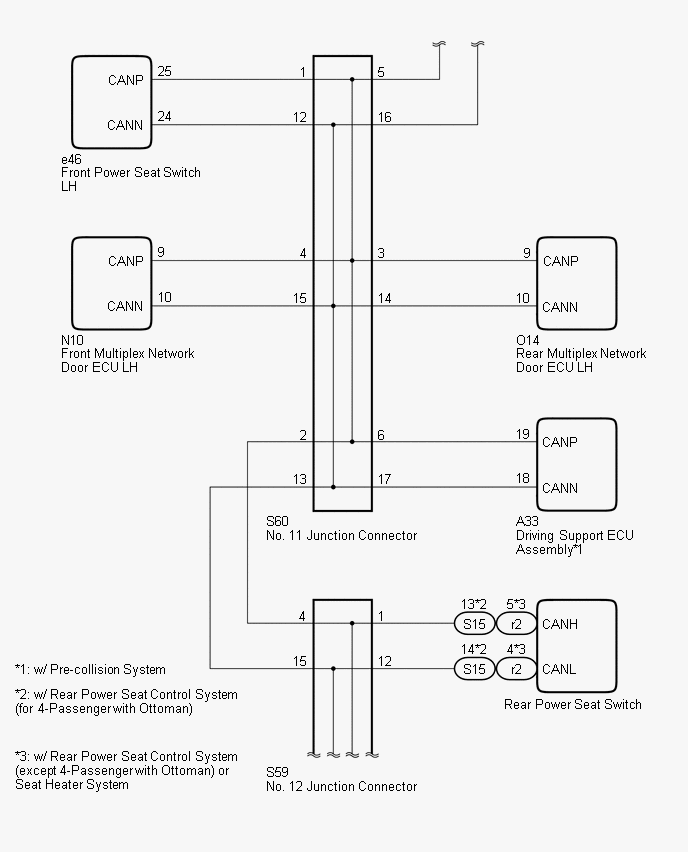

Fig 3: Main Body ECU Circuit Diagram (3 Of 4)

Fig 4: Main Body ECU Circuit Diagram (4 Of 4)
